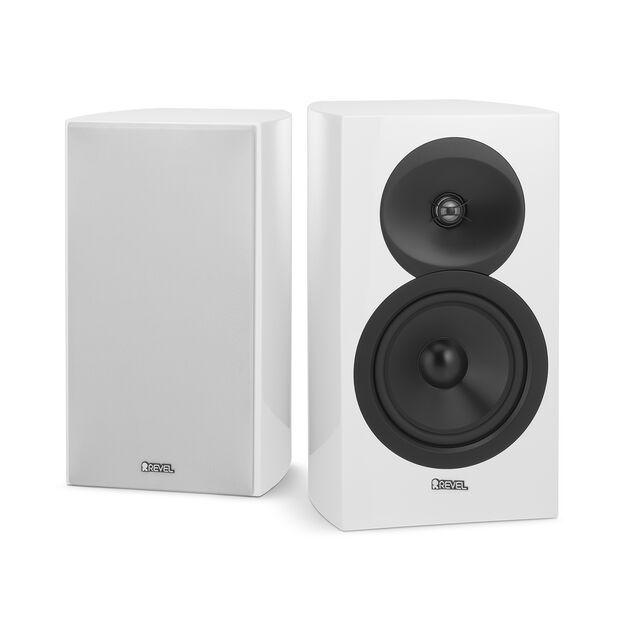

M16 Highlights
-
Derived from Revel’s award-winning Performa3 Series Loudspeakers
-
6.5"deep anodized aluminum cone woofers
-
1" Aluminum Tweeter
-
Fourth generation Acoustic Lens waveguides
-
Computer optimized driver positioning and network integration
-
Constant Pressure Gradient Port Design
-
No visible fasteners on the front, top or side panels
-
Magnetic grilles with brushed metallic logos
General Specifications
| Crossover Frequencies | 2.1kHz |
|---|---|
| Enclosure Type | Bass-Reflex via Rear-Firing Port |
| High-frequency Driver Components | 1" Aluminum Tweeter with Acoustic Lens Waveguide |
| Nominal Impedance | 6 Ohms |
| Input Connections | Five-way binding posts |
| Low Frequency Extension | 55Hz, 50Hz, 45Hz (-3 dB, -6 dB, -10 dB) |
| Low-frequency Driver Components | 6.5" Aluminum Cone Woofer |
| Recommended Amplifier Power | 50-120W |
| Sensitivity | 86dB (2.83V @ 1M) |
| Dimensions | 14.75" x 8.6"x 10.76" (37cm x 22cm x 27cm)—Including Feet |
| Weight | 16 lbs |
