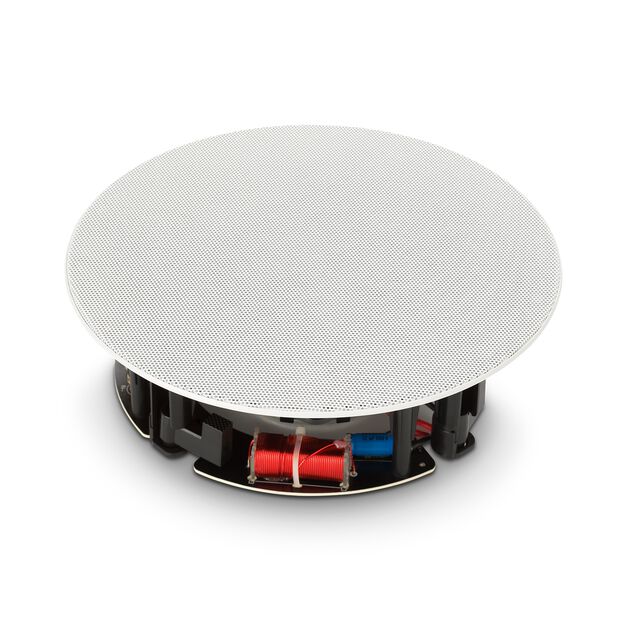

Revel introduces the C263LP and C283LP low-profile in-ceiling loudspeakers. Requiring less than 2.8” (70mm) mounting depth, the 6-1/2” C263LP and 8” C283LP provide ideal solutions in applications with insufficient depth to accommodate traditional in-ceiling speakers.
Revel introduces the C263LP and C283LP low-profile in-ceiling loudspeakers. Requiring less than 2.8” (70mm) mounting depth, the 6-1/2” C263LP and 8” C283LP provide ideal solutions in applications with insufficient depth to accommodate traditional in-ceiling speakers. Both feature cast polymer frame woofers with aluminum cones, and 1” aluminum dome tweeters. “Zero-bezel” magnetic grilles make the speakers virtually disappear, and eliminate the expense of painting a bezel.
| Frequency Response | 50-15kHz |
|---|---|
| Input Impedance | 6.8 Ohms @ 160Hz |
| Depth | Mounting Depth 2.72" (69.1mm) |
| Weight | 3.1 lb / Shipping weight 4.2lb (1.9 kg) |
| Crossover Frequencies | 3.1 kHz |
| High-frequency Driver Components | 1'' Aluminium Dome Tweeter with Waveguide |
| Low-frequency Driver Components | 6 1/2'' Aluminium Cone, Cast-polymer Frame Woofer |
| Recommended Amplifier Power | 10-100 Watts |
| Sensitivity | 85 dB |
