Home / Products / Product Series / Performa4 / C245
C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Hero C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Front C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Back C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Right C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Detailshot 1 C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Detailshot 2

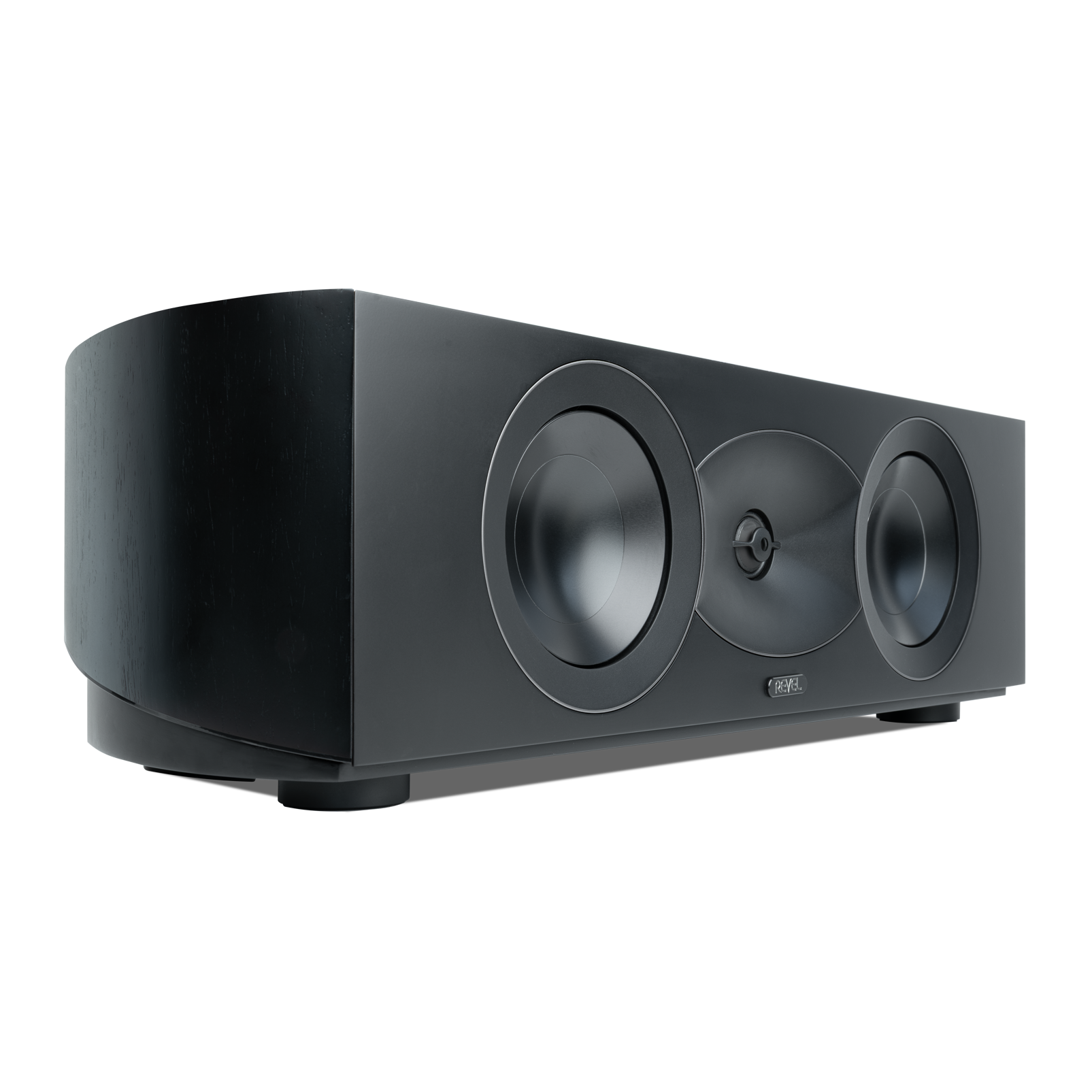

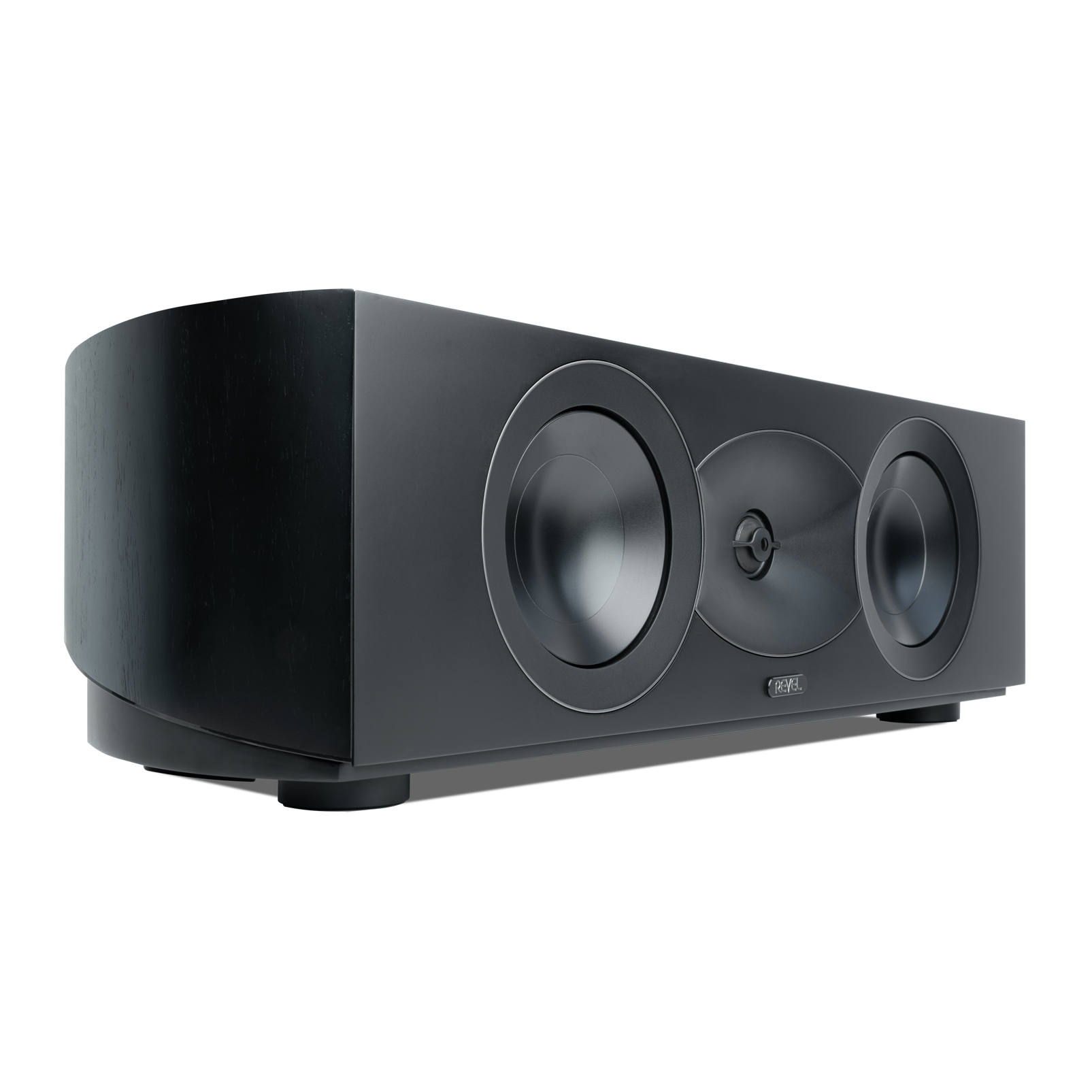

C245 - Black - 2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker - Hero

C245

REVP4C245BLK
Find a Dealer

Micro Ceramic Composite (MCC) cone low-frequency drivers

The C245 features dual 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofers with inverted surrounds. This design incorporates a hidden flange and integrated trim ring, concealing all hardware and emphasizing the sleek aesthetics of the front panel. The woofer utilizes a newly patented cast frame engineered to optimize airflow for maximum cooling, reduced weight, increased rigidity, and improved resonance performance.

1-inch (25mm) Deep Ceramic Composite (DCC) dome tweeter

The C245’s 1-inch (25mm) DCC dome tweeter is mounted in a 7th-generation Acoustic Lens waveguide, setting a new standard for performance in its class. This advanced design ensures seamless integration with the woofers for superior directivity control, resulting in greater efficiency, improved dynamic range, and reduced distortion. Developed using advanced modeling software, the tweeter delivers exceptionally smooth sound even far off-axis, an important contributor to overall sound quality, providing consistent performance across an exceptionally wide listening area. The new waveguide even increases dispersion at higher frequencies, creating a more immersive and natural listening experience.

Premium Design Details

The C245 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.

Precision 2-Way Crossover

The C245 employs a precision 2-way crossover network featuring premium components, including air-core inductors in the tweeter circuits. These high-quality elements preserve subtle musical details that would otherwise be lost. This coupled with the dual MCC woofers produces excellent dialogue and is the perfect addition to a home theater system. Revel’s world-class engineering team utilizes high-order crossover slopes and a proprietary 7th-generation Acoustic Lens waveguide geometry to achieve seamless transducer integration, delivering exceptional accuracy and natural sound reproduction.

5-Way Crystal Brass Binding Posts

5-way binding posts provide listeners with flexible, high-quality connection options, including banana plugs, spade lugs, pin connectors, or bare wire.

2-Way Dual 5.25-Inch (130mm) Center Channel Loudspeaker

Born from decades of world-class loudspeaker innovation, the Revel C245 provides a dedicated center channel solution for home cinema systems in combination with any of the Performa4 floorstanding and bookshelf loudspeakers. It features dual 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofers and a 1-inch (25mm) DCC dome tweeter mounted to a 7th generation Acoustic Lens waveguide. These components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy and exceptional dialogue clarity.

  • Highlights
  • Specifications
  • What's in the box?
  • Documents & Downloads

C245 Highlights

  • Dual 5.25-inch (130mm) Center Channel Loudspeaker
  • 1-inch (25mm) Deep Ceramic Composite (DCC) Dome Tweeter
  • 7th Generation Acoustic Lens Waveguide
  • Micro Ceramic Composite (MCC) Woofers with Inverted Surrounds
  • Cast aluminum FEA Optimised Woofer Frames
  • Premium 2-way Crossover Design
  • Premium Wood Veneer Finish

General Specifications

Type Center Channel Loudspeaker
Low Frequency Driver 2 x 5.25 in (130 mm) Micro Ceramic Composite (MCC) Cone Woofer
High Frequency Driver 1 in (25mm) DCC Dome Tweeter
High Frequency Device 7th generation Acoustics Lens waveguide
Recommended Amplifier Power 15-200W
Frequency Response ± 6dB 55Hz-40kHz
Sensitivity @ 1M, 2.83V 86 dB
Nominal Impedance 6 Ohms
Crossover Frequencies 1.8 kHz
Enclosure Tuning Bass-Reflex via Rear-Mounted Port
Wood Veneer Finish (Walnut/Black Walnut)
Dimensions (HxWxD) 7.1in x 23.4x10.9 (181mm x 594.5mm x 277mm)
Product Weight:27.1lbs. (12.3 kg)
Shipping Weight 35.1lbs. (15.9kg)
Shipping Units of Measure Each

What's in the box?

  • 1 x C245
  • 4 x Anti-Slip Pads
  • 2 x Foam Port Plugs
  • 1 x Speaker Grille
  • 1 x Safety Sheet
  • 1 x Quick-Start Guide

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.
