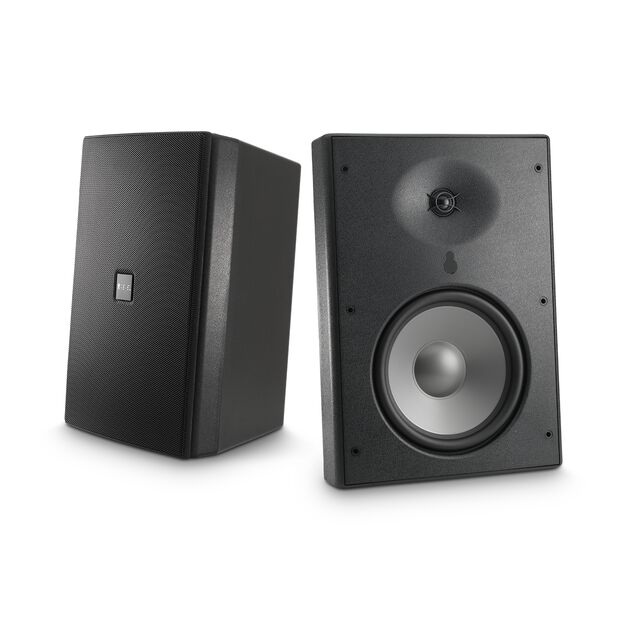

M80XC Highlights
-
8-inch / 200mm Aluminum cone woofer
-
1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
-
70V / 100V 60W variable tap with 8-ohm bypass
-
Durable polymer enclosure with weather-coated Aluminum grille
-
Stainless Steel input screw terminals with weather protection cover
-
Discrete InvisiBall® mounting system with flexible positioning
-
IP56 Weather Protection Rating
-
Available in Black or White finish
General Specifications
| High-Frequency Driver Components | 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide |
|---|---|
| Low-Frequency Driver Components | 8-inch / 200mm Aluminum cone woofer |
| Input Connections | Stainless Steel screw terminals |
| Frequency Range | 60Hz - 22kHz -3dB |
| Recommended Amplifier Power | 20 - 80 Watts RMS |
| Transformer Taps | 70V 60W, 30W, 15W, 7.5W, 8-ohm bypass 100V 60W, 30W, 15W, 8-ohm bypass |
| Crossover Frequencies | 2.3kHz |
| Low Frequency Extension | -10dB @ 45Hz, -6dB @ 52Hz, -3dB @ 60Hz |
| Impedance | 70V / 100V 60W variable tap with 8-ohm bypass |
| Sensitivity | 89dB @ 2.83V / 1m |
| Enclosure Type | Sealed |
| Mounting | InvisiBall® mounting system |
| Finishes | Black or White |
| Dimensions (H X W X D) | 15 x 11 x 8.6 in (380 x 280 x 220 mm) 8.0 in (200mm) deep when mounted on InvisiBall wall mount |
| Weight | 14 lb (6.4 kg) |
| Included Accessories | Input terminal weather cover, InvisiBall wall mount, 6 x 180mm hex key |
