REVEL IN LINCOLN.
PERFECTION 19 YEARS IN THE MAKING.
Perfection, no matter how long it takes. That's the Revel way. And that's why it has taken 19 years to bring our unrivaled home audio to an automotive brand with the same uncompromising standards. Revel and Lincoln introduce a unique collaboration that elegantly fuses the art of luxury with the science of sound.
The Lincoln Motor Company will be the exclusive automaker to offer Revel and Revel Ultima® audio systems in its lineup of luxury vehicles.
- The collaboration
- Vehicles
- Stories
- Features
- Technologies
- Reviews
THE ART OF LUXURY MEETS THE SCIENCE OF SOUND.
Revel’s deep scientific foundation, home theater speaker design heritage and trademark sonic signature — pure, musical and faithful to the original performance — is all integrated into every Lincoln with a Revel audio system without a single compromise. Point Source Architecture maintains the close positioning between tweeters and midranges so that every detail of a song reaches a passenger’s ears at the exact same time and magnitude.
POINT SOURCE ARCHITECTURE maintains the close positioning between tweeters and midranges so that every detail of a song reaches a passenger’s ears at the exact same time and magnitude.

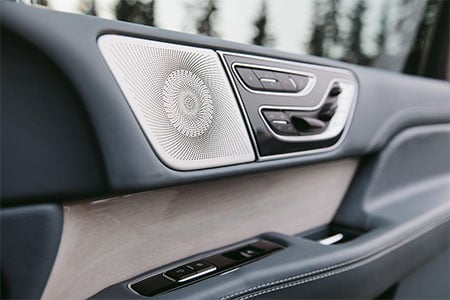

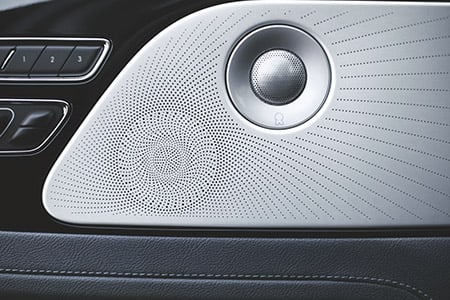

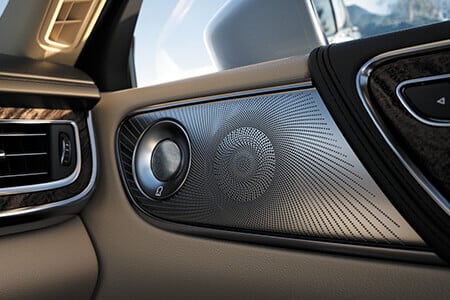

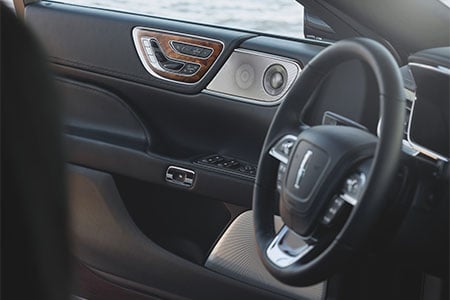

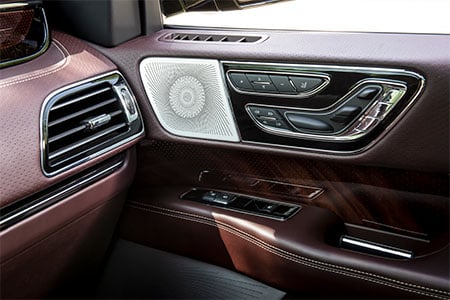

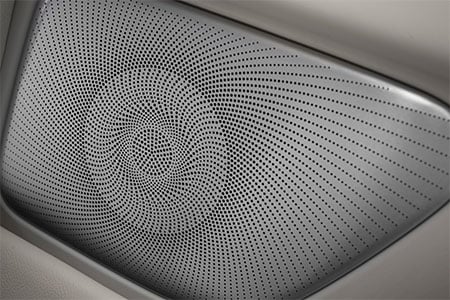

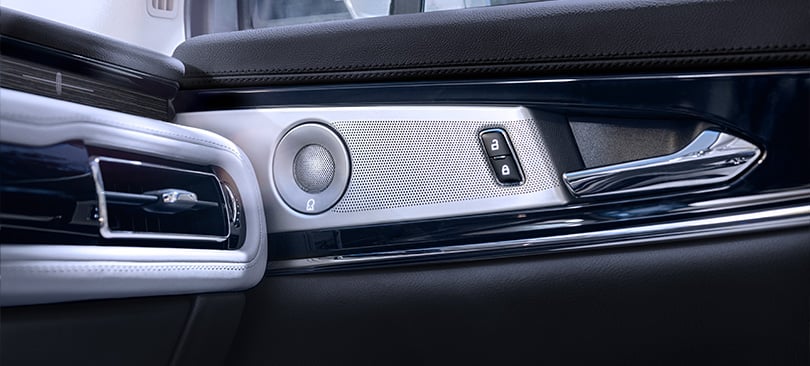

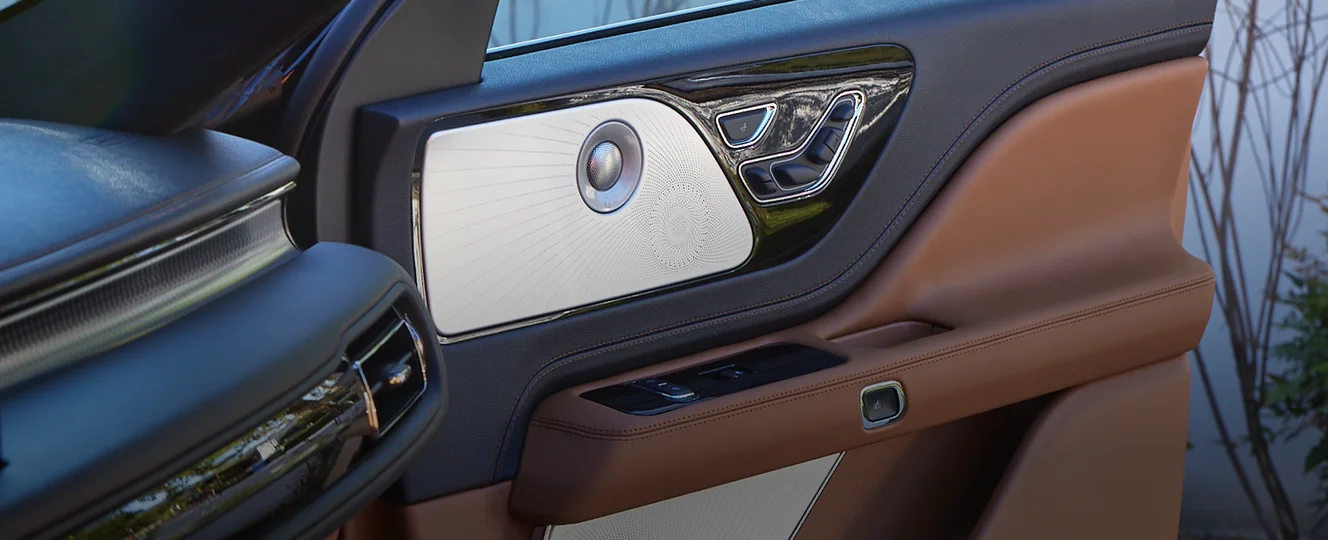

REVEL WAVEGUIDES built into every door optimize high-frequency dispersion, allowing a seamless blend between the tweeter and midrange speakers.
FIELD BALANCING SHORTING RINGS provide increased clarity so you can hear every subtle detail in a song, and reduce distortion to levels well below audibility to the human ear.
The result: sound so perfect, so distinctly Revel, you’ll know why it took 19 years. And you can only hear it in Lincoln.
Vehicles
-
Lincoln Aviator
-
Lincoln Navigator
-
Lincoln mkz
-
Lincoln Nautilus
-
Lincoln continental
IN LINCOLN AVIATOR
–
REVEL AUDIO SYSTEM
Experience unheard-of depth and detail in the All-New Lincoln Aviator. Revel Ultima 3D featuring QuantumLogic 3D Surround Sound Technology adds new dimension of sound to your in-cabin experience.
REVEL AUDIO SYSTEM
Quick Specs
- 12-ChannelAmplifier
- 14 Speakers

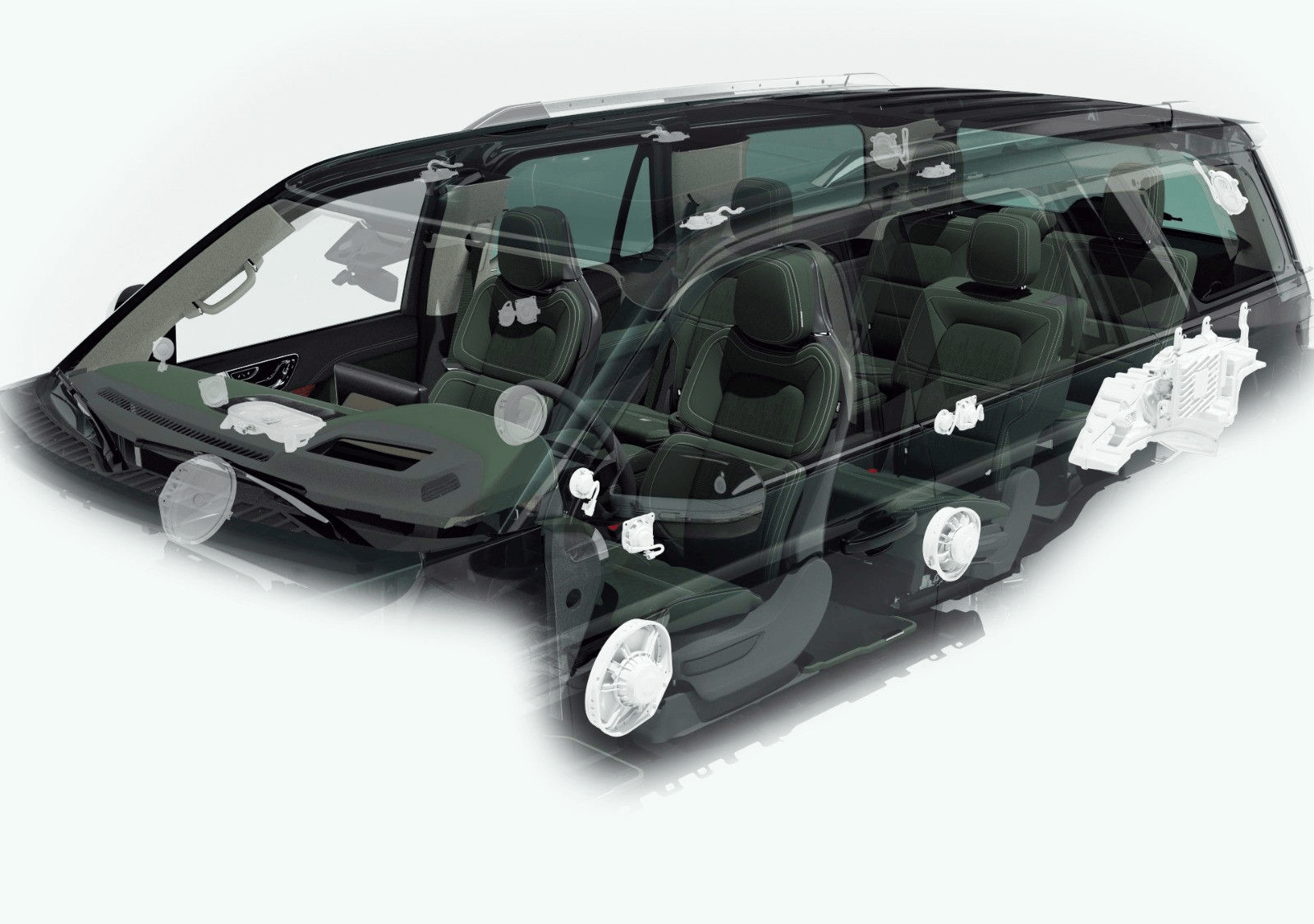

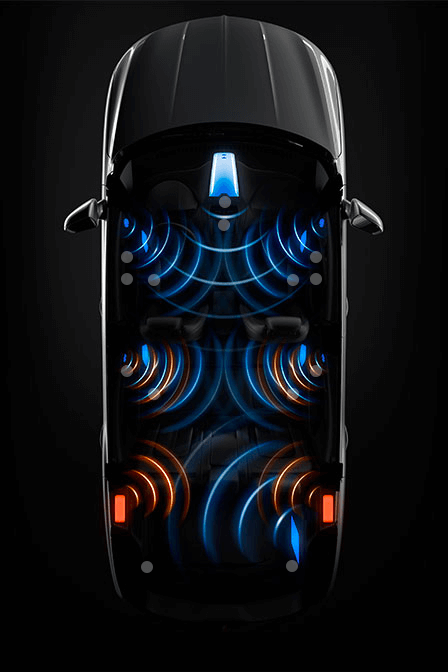

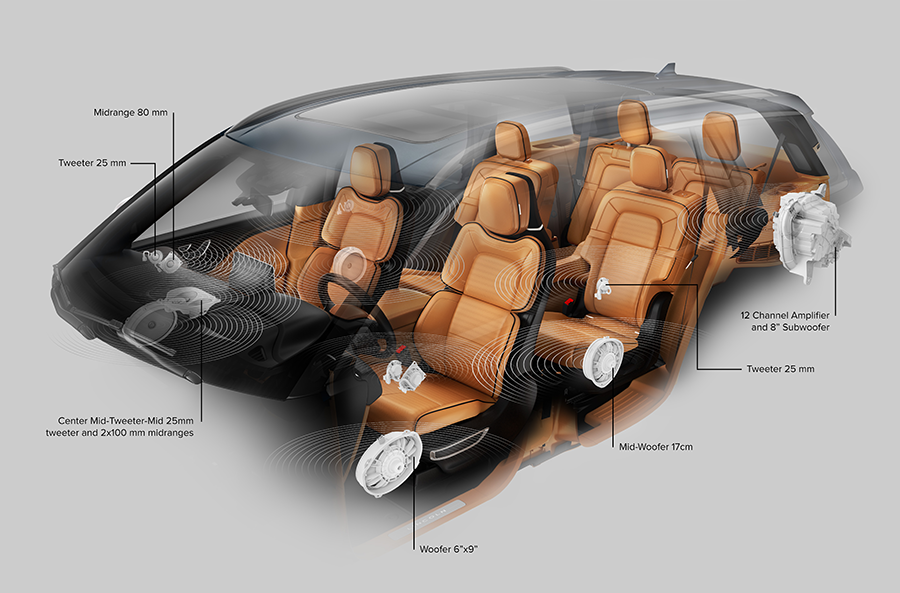

System overview
Center and Front Doors
Center Mid-Tweeter-Mid 1x25mm Tweeter and
2x 100mm Midrange speakers
2x 25mm Tweeter
2x 80mm Midrange
2x 6”x 9” Woofer
Rear Doors
2x 25mm Tweeter
2x 17cm Mid-Woofer
Subwoofer & Rear Deck
Dual Voice-Coil Subwoofer 8” Ported Enclosure
12 Channel Amplifier
Revel Ultima 3D Audio System
Quick Specs
- 20 Channel Amplifier
- 28 Speakers
System overview
Center & Front Doors
Center Mid-Tweeter-Mid 1x25mm Tweeter and
2x 100mm Midrange speakers
2x 25mm Tweeter
2x 80mm Midrange
2x 6”x 9” Woofer
Rear Doors
2x 25mm Tweeter
2x 80mm Midrange
2x 17cm Mid-Woofer

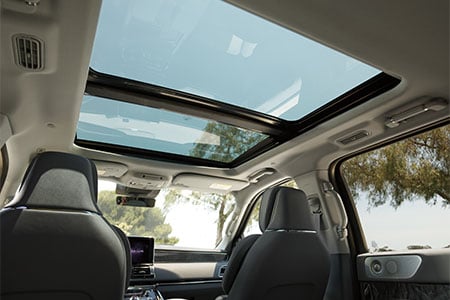

Headliner Speakers
8x 40mm height speakers
Headliner Speakers
Dual Voice-Coil Subwoofer 8” Ported Enclosure
20 Channel Amplifier
IN LINCOLN Navigator
–
REVEL AUDIO SYSTEM
Enjoy fully immersive and acoustic clarity with the available Revel audio system in the Lincoln Navigator. Everything from the trim to the door handle placement was considered and designed from the ground up to ensure sonic perfection.
REVEL AUDIO SYSTEM OVERVIEW
Quick Specs
- 12-ChannelAmplifier
- 14 Speakers
System overview
CENTER FRONT
25mm Mid-tweeter
2x100mm Midrange Speakers
FRONT AND REAR DOORS
25mm Tweeters
80mm Midrange Speakers.
7”x10” Woofers
25mm Tweeters
170mm Mid-Woofers
SUBWOOFER & REAR DECK
Dual Voice-Coil Subwoofer 10”
12 Channel Amplifier
REVEL ULTIMA AUDIO SYSTEM OVERVIEW
Quick Specs
- 20 Channel Amplifier
- 20 Speakers
System overview
CENTER FRONT
25mm Mid-tweeter
2x100mm Midrange Speakers
FRONT AND REAR DOORS
25mm Tweeters
80mm Midrange Speakers.
7”x10” Woofers
25mm Tweeters
80mm Midrange Speakers
170mm Mid-Woofers
80mm Midrange Speakers, 25mm tweeter combo
SUBWOOFER & REAR DECK
Dual Voice-Coil Subwoofer 10”
20 Channel Amplifier
IN LINCOLN MKZ
–
REVEL AUDIO SYSTEM
Dedication to Performance, Authenticity and Craftsmanship make the available 20-speaker Revel Ultima system and the available 14-speaker Revel audio system perfect for the Lincoln MKZ.

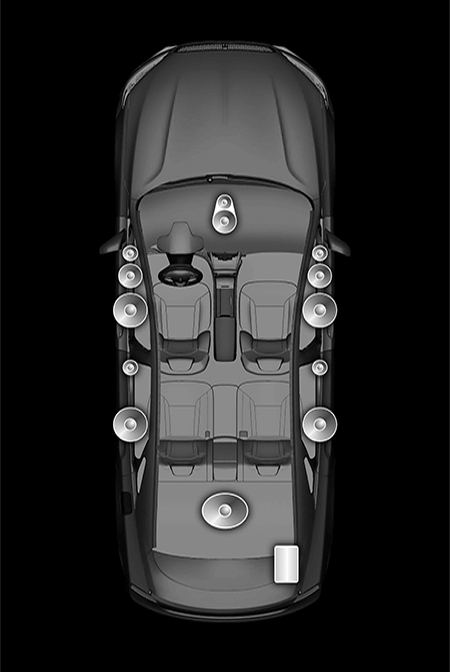

REVEL AUDIO SYSTEM OVERVIEW
Quick Specs
- 12-Channel Class D Amplifier
- 14 Speakers
System overview
CENTER FRONT
25mm tweeter and 80mm midrange, two-way center channel in IP.
FRONT AND REAR DOORS
MIDRANGE 80 midrange speakers in front doors.
MID-WOOFER 170mm woofer in front and rear doors.
TWEETER 25mm tweeter with Revel waveguide in front and rear door
SUBWOOFER & REAR DECK
AMP Revel 12-Channel Amplifier.
SUBWOOFER 6x9 subwoofer rear deck.
REVEL ULTIMA AUDIO SYSTEM OVERVIEW
Quick Specs
- 20 Channel Class A/B and Class D hybrid amplifier
- 20 Speakers
System overview
CENTER FRONT
FRONT 25mm tweeter and 80mm midrange, two-way center channel in IP.
FRONT AND REAR DOORS
MIDRANGE 80 midrange speakers in front doors.
MID-WOOFER 170mm woofer in front and rear doors.
TWEETER 25mm tweeter with Revel waveguide in front and rear door
SUBWOOFER & REAR DECK
MIDRANGE 6x9 subwoofer
AMP Revel 20-channel amplifier.
MIDRANGE SUBWOOFER 80mm midrange / 25mm tweeter combo mounted on bracket with 6x9 subwoofer on rear deck.
IN LINCOLN NAUTILUS
–
REVEL AUDIO SYSTEM
Enjoy fully immersive and acoustic clarity with the available Revel audio system in the Lincoln Nautilus. Everything from the trim to the door handle placement was considered and designed from the ground up to ensure sonic perfection.
REVEL AUDIO SYSTEM OVERVIEW
Quick Specs
- 12-ChannelClass D amplifier
- 13 Speakers
System overview
CENTER FRONT
MIDRANGE 25mm tweeter and 80mm midrange, twoway center channel in IP.
FRONT AND REAR DOORS
MIDRANGE 80mm midrange speakers.
MID-WOOFER 170mm woofer.
TWEETER 25mm tweeter.
SUBWOOFER & REAR DECK
SUBWOOFER 10 dual voice coil subwoofer.
AMPLIFIER 12-channel amplifier.
REVEL ULTIMA AUDIO SYSTEM OVERVIEW
Quick Specs
- 20 Channel Class A/B and Class D hybrid amplifier
- 19 Speakers
System overview
CENTER FRONT
MIDRANGE 25mm tweeter and 80mm midrange, twoway center channel in IP.
FRONT AND REAR DOORS
MIDRANGE 80mm midrange speakers.
MID-WOOFER 170mm woofer.
TWEETER 25mm tweeter.
SUBWOOFER & REAR DECK
TWEETER 25mm tweeter.
MIDRANGE 80mm midrange speakers.
SUBWOOFER 10 dual voice coil subwoofer.
AMPLIFIER 20-channel hybrid amplifier.
IN LINCOLN CONTINENTAL
–
REVEL AUDIO SYSTEM
The available 19-speaker Revel Ultima and available 13-speaker Revel audio system are custom designed for the Lincoln Continental to captivate your senses with audiophile quality and breathtaking musical accuracy.

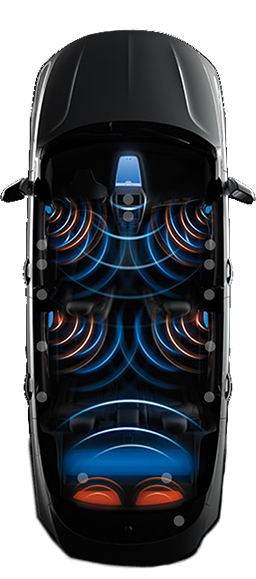

REVEL AUDIO SYSTEM OVERVIEW
Quick Specs
- 12-ChannelClass D Amplifier
- 13 Speakers
System overview
CENTER FRONT
MIDRANGE 25mm speakers.
FRONT AND REAR DOORS
MIDRANGE 80mm speakers.
MID-WOOFER 170mm woofer.
TWEETER 25mm speakers.
REAR DECK
MID-WOOFER 170mm woofer.
REAR
SUBWOOFER 10 dual voice coil subwoofer
MIDWOOFER 12-channel hybrid amplifier
REVEL ULTIMA AUDIO SYSTEM OVERVIEW
Quick Specs
- 19 Channel Class A/B and Class D hybrid amplifier
- 19 Speakers
System overview
CENTER FRONT
MIDRANGE 25mm tweeter and 80mm midrange, twoway center channel in IP.
FRONT AND REAR DOORS
MIDRANGE 80mm speakers.
MID-WOOFER 170mm woofer.
TWEETER 25mm speakers.
REAR DECK
SUBWOOFER 10 dual voice coil subwoofer
MIDRANGE 80mm twoway speakers
TWEETER 25mm tweeter speakers
AMP 20-channel hybrid amplifier
Behind the Wheel, Inside the Sound
-
AUDIO CRAFTED FOR LINCOLN,
AND VICE VERSA.Revel and Lincoln share a common legacy deeply rooted in precision craftsmanship. Engineers and designers from both brands worked closely from day one to truly replicate the Revel home audio experience in the Lincoln Nautilus. Everything from the trim to the door handle placement was considered and designed from the ground up to ensure sonic perfection, and a game-changing collaboration.
TECHNOLOGY
-
QLS
(QLS) Next-generation surround sound technology provides an authentic, multi-dimensional surround sound experience from any source without the residual smearing effects often found with typical surround technologies.
-
GREENEDGE™
An eco-friendly technology initiative, GreenEdge™ combines an environmentally friendly design with dramatic energy savings, all while maintaining premium sonic performance.
-
CLARI-FI
If you download, stream or play music on a digital device, your music is digitally-compressed. Compression can remove up to 90% of the audio details originally recorded in your favorite songs – so you're left listening to a reduced version of the real thing. Clari-Fi music restoration technology brings music back the true sound of your music.
-
POINT SOURCE ARCHITECTURE
Maintains the close positioning between tweeters and midranges so that every detail of a song reaches a passenger’s ears at the exact same time and magnitude.
