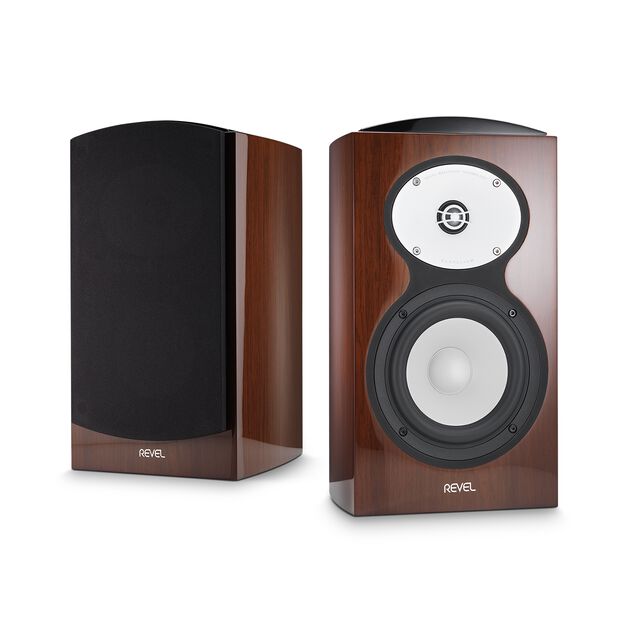

M126Be Highlights
-
1-inch Beryllium Dome Tweeter
-
High-order Crossovers with Film Capacitors and Air Core Inductors
-
5th-generation Acoustic Lens Waveguide
-
Magnetically Attached Grilles
-
DCC Cone Midrange and Woofers
-
4 Premium High-gloss Finishes Available
General Specifications
| High Frequency Driver Components | 1" Beryllium dome with acoustic lens waveguide |
|---|---|
| Low-Frequency Driver Components | 6.5" Deep Ceramic Composite (DCC) Aluminum Cone with cast frame |
| Frequency Response (-6dB) | 46Hz - 40kHz |
| Low-frequency extension | 40 Hz (-10dB); 46 Hz (-6dB); 53 Hz (-3dB) |
| Recommended Amplifier Power | 50 - 150 Watts |
| Crossover Frequencies | 1.7kHz |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 86dB (2.83V @1M) |
| Finishes | High-gloss Black, White, Walnut and Metallic Silver |
| Dimensions (H X W X D) | 15.2"x 8.3" x 10.3" (386 x 211 x 262mm) |
| Net Weight | 22 lbs / 9.97kg |
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
