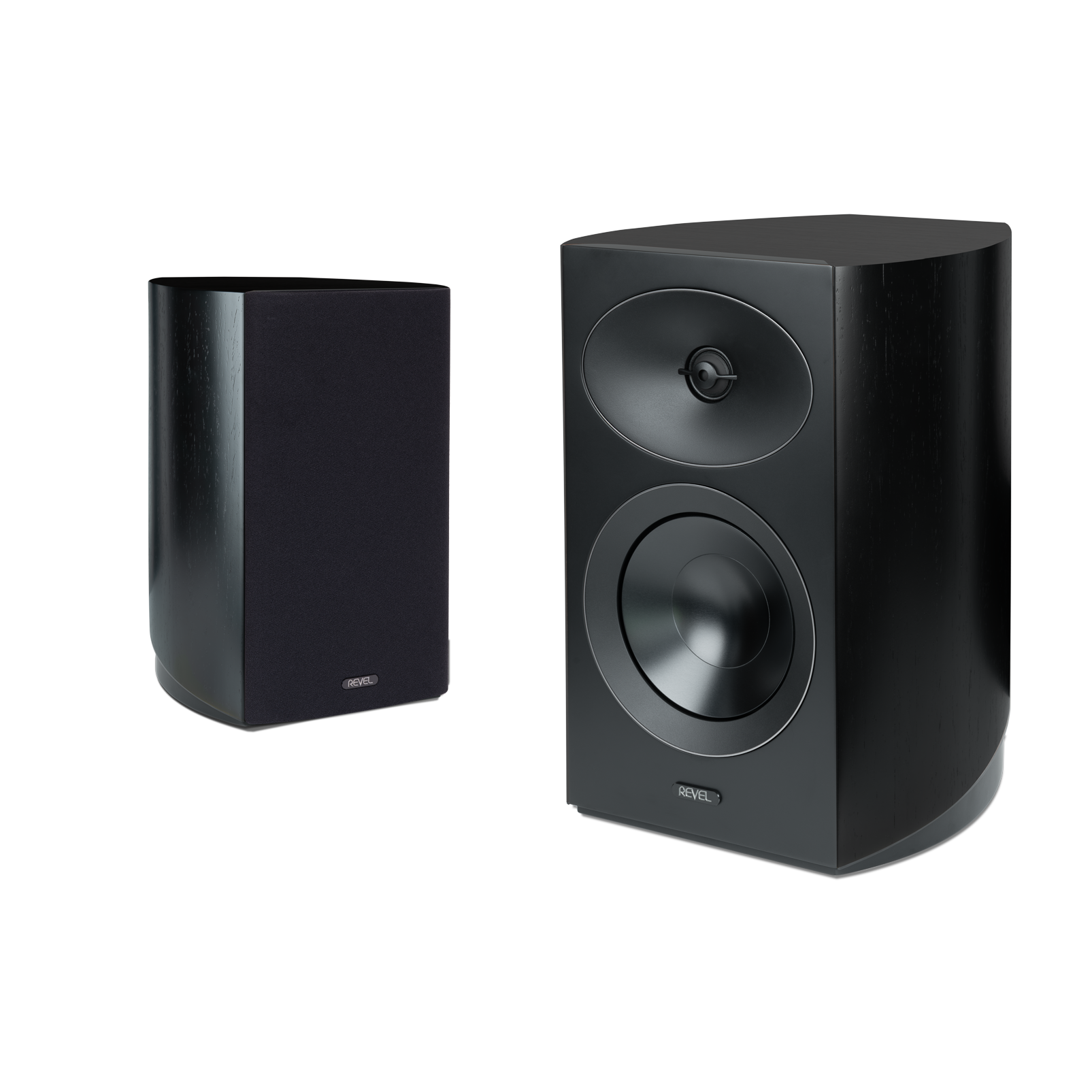

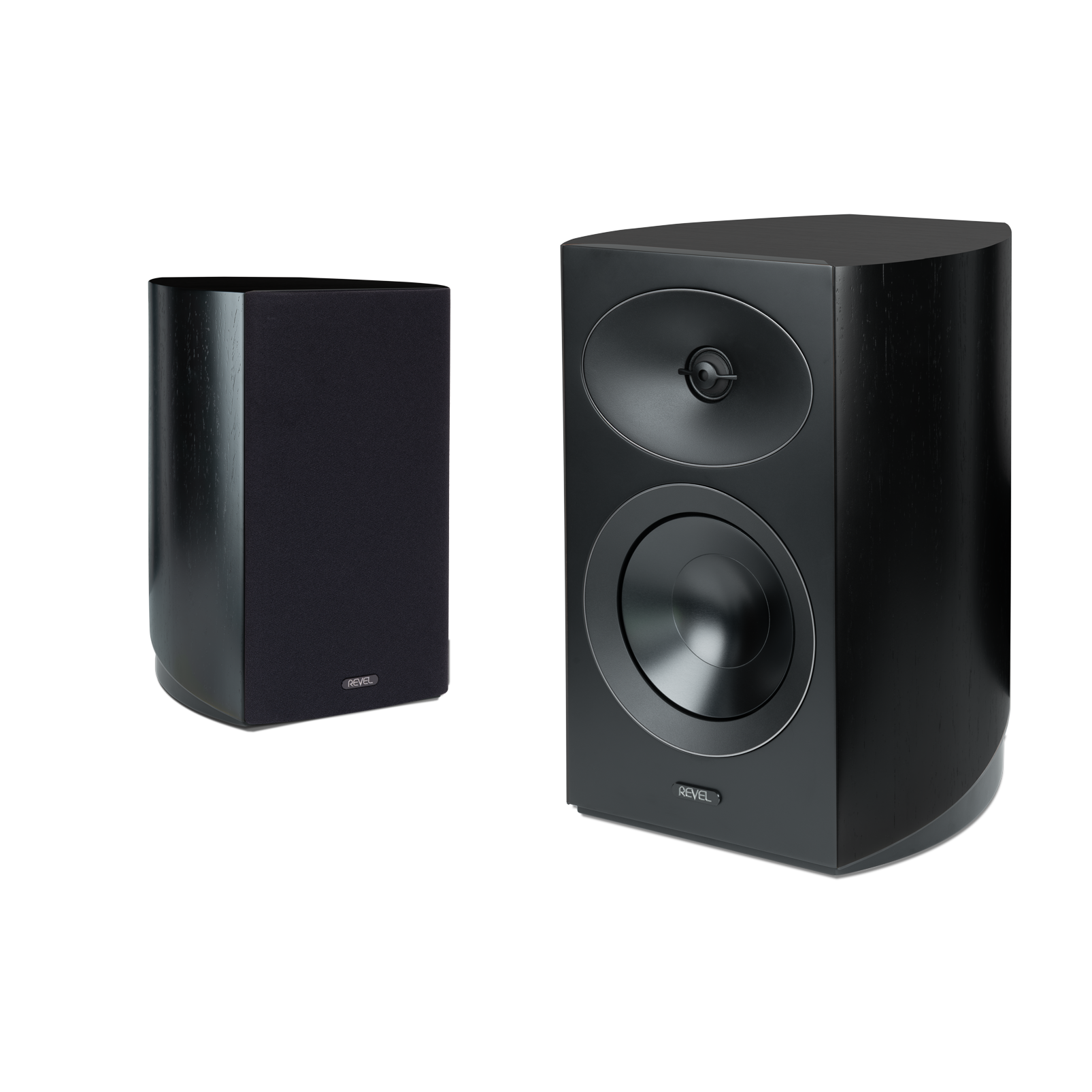

M146 - Black - 2-Way 6.5-Inch (165mm) Bookshelf Loudspeaker - Hero

M146

REVP4M146BLK
Find a Dealer

Micro Ceramic Composite (MCC) cone low frequency driver

The M146 features a 6.5-inch (165mm) Micro Ceramic Composite (MCC) cone woofer with inverted surround. This design incorporates a hidden flange and integrated trim ring, concealing all hardware and emphasizing the sleek aesthetics of the front panel. The woofer utilizes a newly patented cast frame engineered to optimize airflow for maximum cooling, reduced weight, increased rigidity, and improved resonance performance.

1-inch (25mm) Deep Ceramic Composite (DCC) dome tweeter

The M146’s 1-inch (25mm) DCC dome tweeter is mounted in a 7th-generation Acoustic Lens waveguide, setting a new standard for performance in its class. This advanced design ensures seamless integration with the woofer for superior directivity control, resulting in greater efficiency, improved dynamic range, and reduced distortion. Developed using advanced modeling software, the tweeter delivers exceptionally smooth sound even far off-axis, an important contributor to overall sound quality, providing consistent performance across an exceptionally wide listening area. The new waveguide even increases dispersion at higher frequencies, creating a more immersive and natural listening experience.

Premium Design Details

The M146 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.

Precision 2-Way Crossover

The M146 employs a precision 2-way crossover network featuring premium components, including air-core inductors in the tweeter circuits. These high-quality elements preserve subtle musical details that would otherwise be lost. Revel’s world-class engineering team utilizes high-order crossover slopes and a proprietary 7th-generation Acoustic Lens waveguide geometry to achieve seamless transducer integration, delivering exceptional accuracy and natural sound reproduction.

Dual 5-Way (Bi-Amp) Crystal Brass Binding Posts with Shorting Straps

Dual 5-way binding posts provide listeners with flexible, high-quality connection options, including banana plugs, spade lugs, pin connectors, or bare wire. Two sets of terminals are provided to support bi-wiring, bi-amping, or single-wire configurations.

2-Way 6.5-inch (165mm) Bookshelf Loudspeaker

Born from decades of world-class loudspeaker innovation, the Revel M146 is the largest bookshelf in the Performa4 series. It features a 6.5-inch (165mm) Micro Ceramic Composite (MCC) cone woofer and a 1-inch (25mm) DCC dome tweeter mounted in a 7th-generation Acoustic Lens waveguide. The components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy. With the M146, it’s just you and the pure beauty of your music. The M146 is complemented by the optional MFS4 floor stands. The MFS4 provides an elegantly designed stable foundation that positions the loudspeaker at the optimal listening height.

  • Highlights
  • Specifications
  • What's in the box?
  • Documents & Downloads

M146 Highlights

  • 6.5-inch (165mm) Bookshelf Loudspeaker
  • 1-inch (25mm) Deep Ceramic Composite (DCC) Dome Tweeter
  • 7th Generation Acoustic Lens Waveguide
  • Micro Ceramic Composite (MCC) Woofer with Inverted Surround
  • Cast aluminum FEA Optimised Woofer Frame
  • Premium 2-way Crossover Design
  • Premium Wood Veneer Finish

General Specifications

Type Bookshelf Loudspeaker
Low Frequency Driver 1 x 6.5 in (165 mm) Micro Ceramic Composite (MCC) Cone Woofer
High Frequency Driver 1 in (25mm) DCC Dome Tweeter
High Frequency Device 7th generation Acoustics Lens waveguide
Recommended Amplifier Power 15-200W
Frequency Response ± 6dB 43Hz-40kHz
Sensitivity @ 1M, 2.83V 85.5 dB
Nominal Impedance 6 Ohms
Crossover Frequencies 1.7 kHz
Enclosure Tuning Bass-Reflex via Rear-Mounted Port
Wood Veneer Finish (Walnut/Black Walnut)
Dimensions (HxWxD) 14.1in x 9.7in x 12.7in (359mm x 245.56mm x 322.57mm)
Product Weight 24.3 lbs. (11 kg) each
Shipping Weight 59.5 lbs. (27 kg) pair
Shipping Units of Measure Pair

What's in the box?

  • 2 x M146
  • 8 x Anti-Slip Pads
  • 2 x Speaker Grilles
  • 2 x Foam Port Plugs
  • 1 x Safety Sheet
  • 1 x Quick-Start Guide
