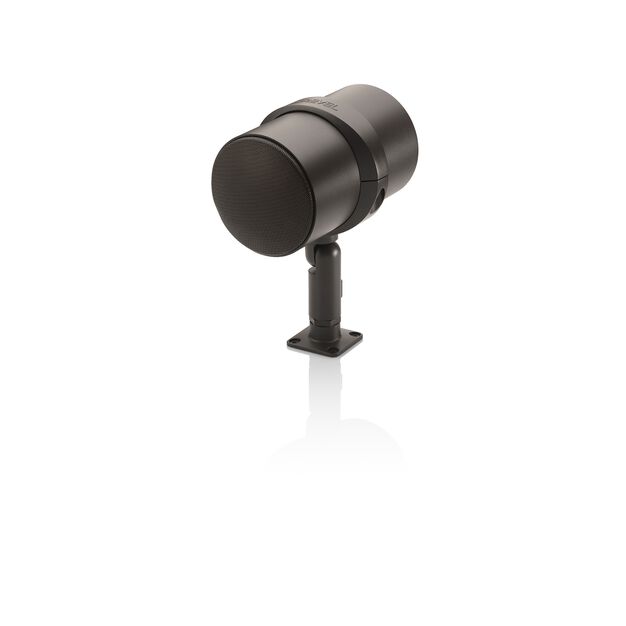

L41XC - Brown - Compact 2-way Extreme Climate Satellite Speaker - Hero

L41XC

REVL41XC

Compact 2-way Extreme Climate Satellite Speaker

The Revel L41XC is a compact 2-way, 4-inch (100mm) satellite outdoor speaker designed to deliver unparalleled, uncompromised Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid or wet.

Find a Dealer

L41XC

The L41XC is a compact 2-way satellite speaker with sliding mounting collar, included ground spike and surface mounting bracket to provide maximum installation flexibility and position stability. A 3/4-inch aluminum dome tweeter provides crystal-clear, high-resolution detail, while a low-distortion 4-inch aluminum cone woofer delivers a powerful and deep bass response. Superior build quality means you get uncompromised performance and iconic Revel sound, even in the harshest environments.

  • Highlights
  • Specifications
  • Documents & Downloads

L41XC Highlights

  • 4-inch/100mm Micro Ceramic Composite (MCC) aluminum diaphragm woofer
  • 3/4-inch/19mm Micro Ceramic Composite (MCC) aluminum diaphragm tweeter
  • IP67 rating that certifies protection against dust, and strong water jets and waves.
  • 4-Ohm or 70V operation via integrated transformer with selectable power taps up to 60W
  • Sliding clamp assembly allows you to adjust the center of gravity

General Specifications

Frequency Response 100Hz – 20kHz @-3dB
Crossover Frequencies 5.5kHz
Finishes Earthen Brown
High-frequency Driver Components 0.75” Micro Ceramic Composite Aluminum Dome Tweeter
Low-frequency Driver Components 4” Micro Ceramic Composite Aluminum Cone Woofer
Mounting Sliding Collar, Deck Mounting Bracket, Ground Spike
Recommended Amplifier Power 60W RMS; 100W RMS with High Pass Filter @100Hz
Sensitivity 83dB (2.83V @1M) in Bypass mode
Voltage Gain 70V
Weight 9.9 lbs / 4.5kg
Dimensions (H x W x D) 11.3”/6.5”/9.2” (29.5cm/16.4cm/23.3cm)
Transformer Taps 7.5W, 15W, 30W, 60W
Impedance 4 Ohm in Bypass mode
