F345 - Black - 3-Way Triple 5.25-Inch (130mm) Floorstanding Loudspeaker - Hero

F345

REVP4F345BLK
Find a Dealer

Micro Ceramic Composite (MCC) and Deep Ceramic Composite (DCC) cone mid- and low-frequency drivers

The F345 features three 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofers and a 5.25-inch (130mm) Deep Ceramic Composite (DCC) cone midrange driver all with inverted surrounds. This design incorporates a hidden flange and integrated trim ring, concealing all hardware and emphasizing the sleek aesthetics of the front panel. Both the woofer and midrange utilize a newly patented cast frame engineered to optimize airflow for maximum cooling, reduced weight, increased rigidity, and improved resonance performance.

1-inch (25mm) Deep Ceramic Composite (DCC) dome tweeter

The F345’s 1-inch (25mm) DCC dome tweeter is mounted in a 7th-generation Acoustic Lens waveguide, setting a new performance standard for its class. This advanced design delivers seamless integration with the midrange driver for superior directivity control, resulting in greater efficiency, improved dynamic range, and reduced distortion. Developed using advanced modeling software, the tweeter provides exceptionally smooth sound even far off-axis, an important contributor to overall sound quality, ensuring consistent performance across a wide listening area. The waveguide even increases dispersion at higher frequencies, creating a more immersive and natural sound experience.

Premium Design Details

The F345 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Solid aluminum feet with optional spikes and floor protectors ensure optimal positioning and isolation. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.

Precision 3-Way Crossover

The F345 employs a precision 3-way crossover network featuring premium components, including air-core inductors in the midrange and tweeter circuits. These high-quality elements preserve subtle musical details that would otherwise be lost. Revel’s world-class engineering team utilizes high-order crossover slopes and a proprietary 7th-generation Acoustic Lens waveguide geometry to achieve seamless transducer integration, delivering exceptional accuracy and natural sound reproduction.

Dual 5-Way (Bi-Amp) Crystal Brass Binding Posts with Shorting Straps

Dual 5-way binding posts provide listeners with flexible, high-quality connection options, including banana plugs, spade lugs, pin connectors, or bare wire. Two sets of terminals are provided to support bi-wiring, bi-amping, or single-wire configurations.

3-Way Triple-5.25 inch (130mm) Floorstanding Loudspeaker

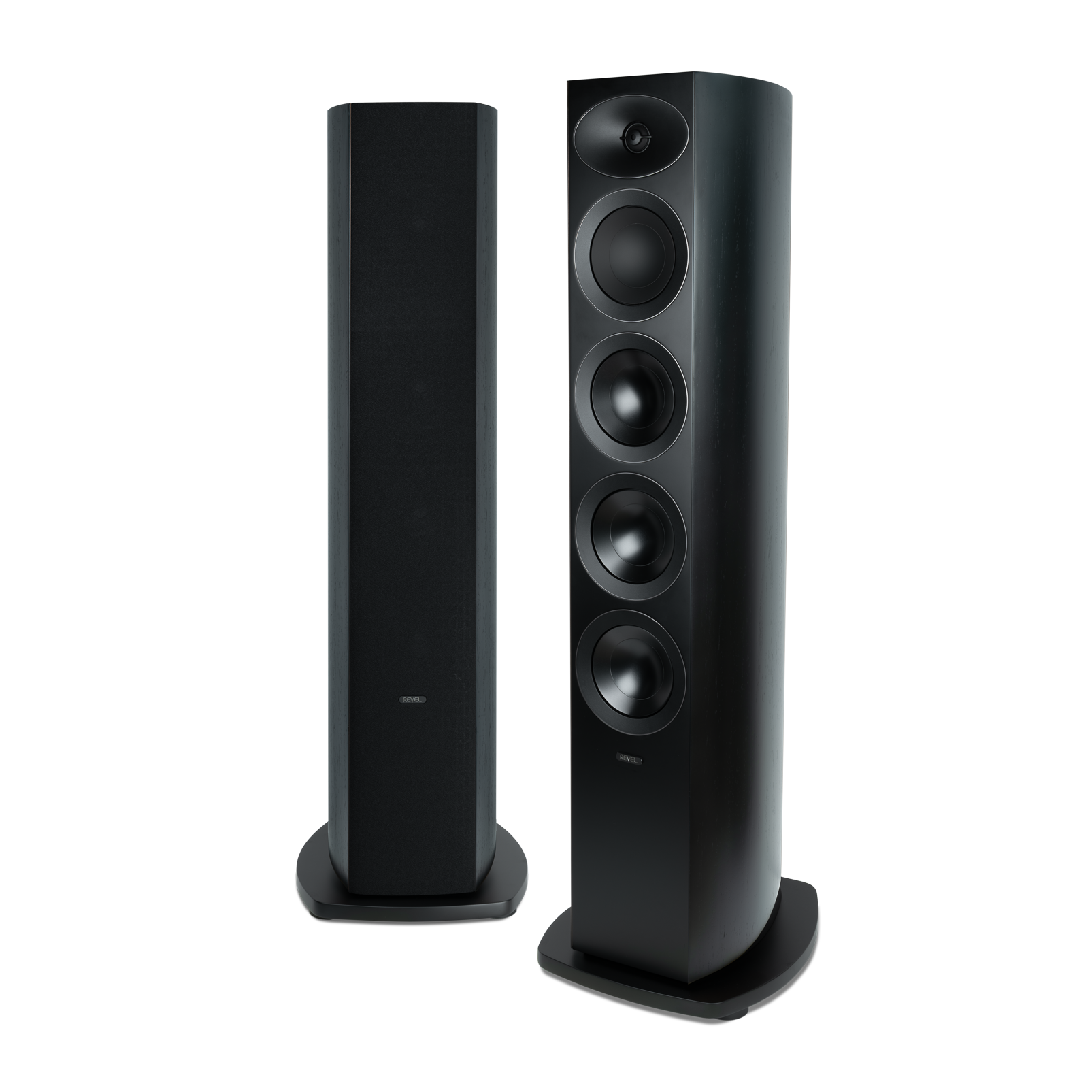

Born from decades of world-class loudspeaker innovation, the Revel F345 is the smaller alternative to the F346 in the Performa4 series. It features three 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofers, a 5.25-inch (130mm) Deep Ceramic Composite (DCC) cone midrange and a 1-inch (25mm) DCC dome tweeter mounted in a 7th-generation Acoustic Lens waveguide. These components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy. With the F345, it’s just you and the pure beauty of your music.

  • Highlights
  • Specifications
  • What's in the box?
  • Documents & Downloads

F345 Highlights

  • Triple 5.25-inch (130mm) Floorstanding Loudspeaker
  • 1-inch (25mm) Deep Ceramic Composite (DCC) Dome Tweeter
  • 7th Generation Acoustic Lens Waveguide
  • Micro Ceramic Composite (MCC) Woofers with Inverted Surrounds
  • Deep Ceramic Composite (DCC) Midrange with Inverted Surround
  • Cast aluminum FEA Optimised Woofer and Midrange Frames
  • Premium Wood Veneer Finish

General Specifications

Type Floorstanding Loudspeaker
Low Frequency Driver 3 x 5.25 in (130 mm) Micro Ceramic Composite (MCC) Cone Woofers
Midrange Driver 1 x 5.25 in (130 mm) Deep Ceramic Composite (DCC)
High Frequency Driver 1-inch (25mm) DCC Dome Tweeter
High Frequency Device 7th generation Acoustics Lens waveguide
Recommended Amplifier Power 30-225W
Frequency Response ± 6dB 36Hz-40kHz
Sensitivity @ 1M, 2.83V 87 dB
Nominal Impedance 6 Ohms
Crossover Frequencies 350 Hz / 2.1 kHz
Enclosure Tuning Bass-Reflex via Dual Rear-Mounted Ports
Wood Veneer Finish (Walnut/Black Walnut)
Dimensions (HxWxD) 40.9in x 11.9in x 13.9in (1038mm x 301.86mm x 352.46mm)
Product Weight 64.0 lbs. (29.1 kg)
Shipping Weight 85.1 lbs. (38.6 kg)
Shipping Units of Measure Each

What's in the box?

  • 1 x F345
  • 4 x Floor Spikes
  • 4 x Spike Protectors
  • 1 x Speaker Grille
  • 1 x Safety Sheet
  • 1 x Quick-Start Guide

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.
