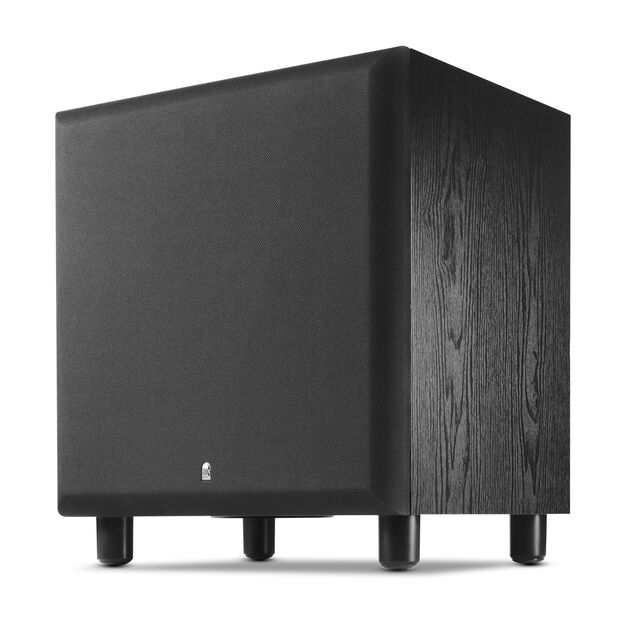

B1 Highlights
-
Woofer composed of micro ceramic composite (MCC) allows for strength and stiffness but very little weight
-
Nomex/cotton blend spider for increased linearity
-
2” (51mm)-diameter copper voice coil would on a Kapton bobbin for impressive power handling
-
Parametric room EQ functions
-
Downward-firing port allows for placement against a wall or cabinet
General Specifications
| Maximum output level | 20Hz – 150Hz with no more than 0.1% THD, 250W, RMS, 300W dynamic |
|---|---|
| Power Requirements | 120VAC @ 60Hz, 3.66A 230VAC @ 50-60Hz, 2.0A - 230VAC @ 50-60Hz, 2.0A |
| Height | 17-3/4” (450mm) |
| Width | 15-3/4” (400mm) |
| Depth | With grille 13 ¼” (336.5 mm) Without grille 12” (304.8 mm) |
| Weight | 51 lb (23.2kg) |
| Crossover Frequencies | Low pass 50Hz – 150Hz, 24dB/octave, continuously variable |
| Finishes | Black |
| Low Frequency Extension | -3dB at 36Hz, -6dB at 32Hz, -10dB at 29Hz |
