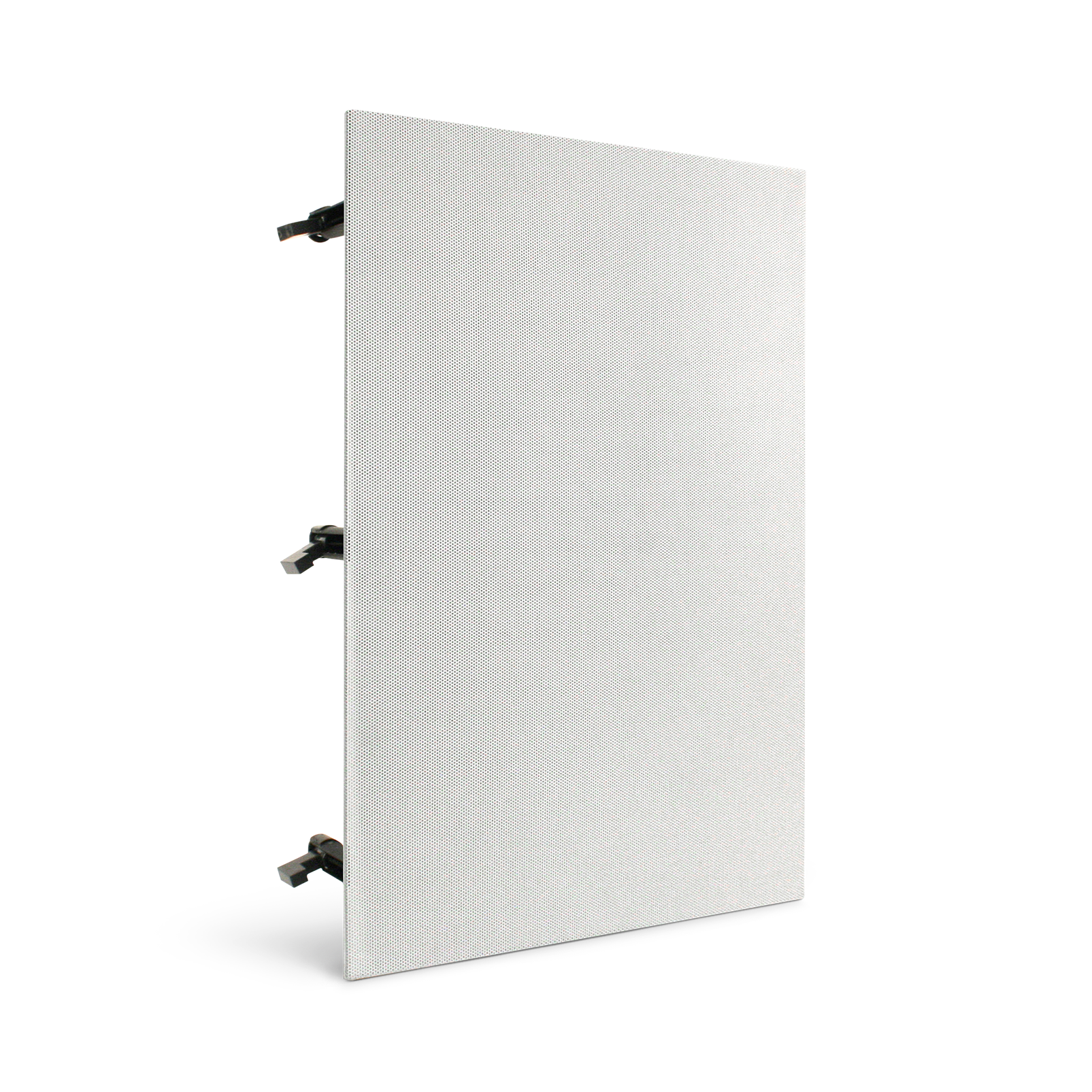

W893 Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
-
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
-
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
-
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
General Specifications
| Depth | Mounting depth 3.7" (9.4 cm) |
|---|---|
| Weight | 10.8 lb (4.9 kg) / Shipping weight 12.8 lb (5.8 kg) |
| Crossover Frequencies | Advanced high-order crossover network |
| Features | Cutout dimensions (H x W) 17.4" x 11.6" (44.3 cm x 29.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 18.5" x 12.7" (47.0 cm x 32.3 cm) |
| High Frequency Driver Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
| Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control / Low Frequency Extension LF boundary compensation |
| Low Frequency Driver Components | 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mid-Frequency Driver Components | 3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange |
| Mounting | C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
| Recommended Amplifier Power | 10 - 200 Watts RMS |
