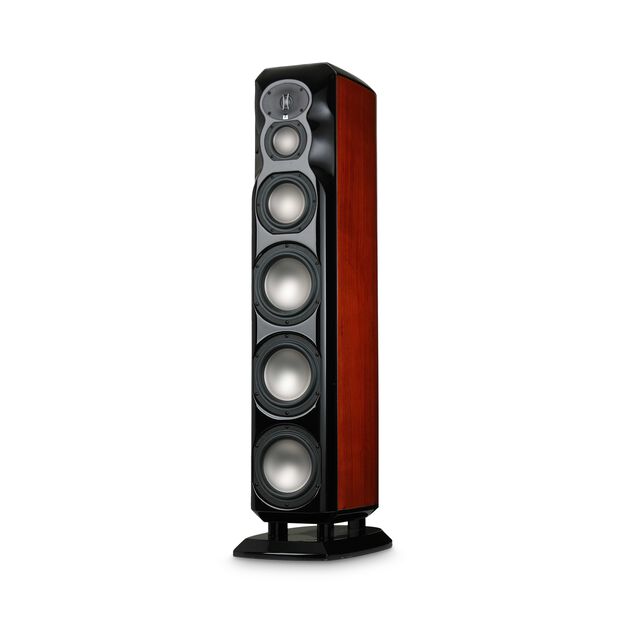

Salon2 Highlights
-
Curvilinear Single Piece Enclosure with 9 Layers of Laminated MDF
-
Narrow Sonically Optimized, 2 ½" Thick Baffle that Virtually Eliminates Diffraction Effects
-
Easily Removable, Magnetically Attached Grilles
-
Pure Beryllium Dome Tweeter with 3rd Generation Waveguide Technology
-
Titanium Cone Woofer and Midrange with Inverted-dome Designs
General Specifications
| Frequency Response | 3 dB from 23 Hz to 45 kHz ±0.5 dB from 29 Hz to 18 kHz ±1.0 dB from 26 Hz to 20 kHz |
|---|---|
| Height | 53.3" (135.4 cm) |
| Width | 14" (35.6 cm) |
| Depth | 23" (58.4 cm) |
| Weight | 146 lb (66.3 kg) Shipping weight 178 lb (80.7 kg) |
| Crossover Frequencies | Four-way, high-order acoustic response @150 Hz, 575 Hz, and 2.3 kHz |
| Finishes | Piano black or mahogany finish |
| High Frequency Driver Components | 4" (10 cm) titanium cone midrange |
| Nominal Impedance | 6 ohms (nominal) 3.7 ohms (minimum @ 90 Hz) |
| Low Frequency Extension | 10 dB at 17 Hz -6 dB at 20 Hz -3 dB at 23 Hz |
| Low Frequency Driver Components | Three 8" (20 cm) titanium cone woofers |
| Mid-frequency Driver Components | 6 ½" (16.5 cm) titanium cone mid-woofer |
| Sensitivity | 86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic) |
| Ultrahigh-frequency Driver Components | 1" (2.5 cm) beryllium tweeter |
