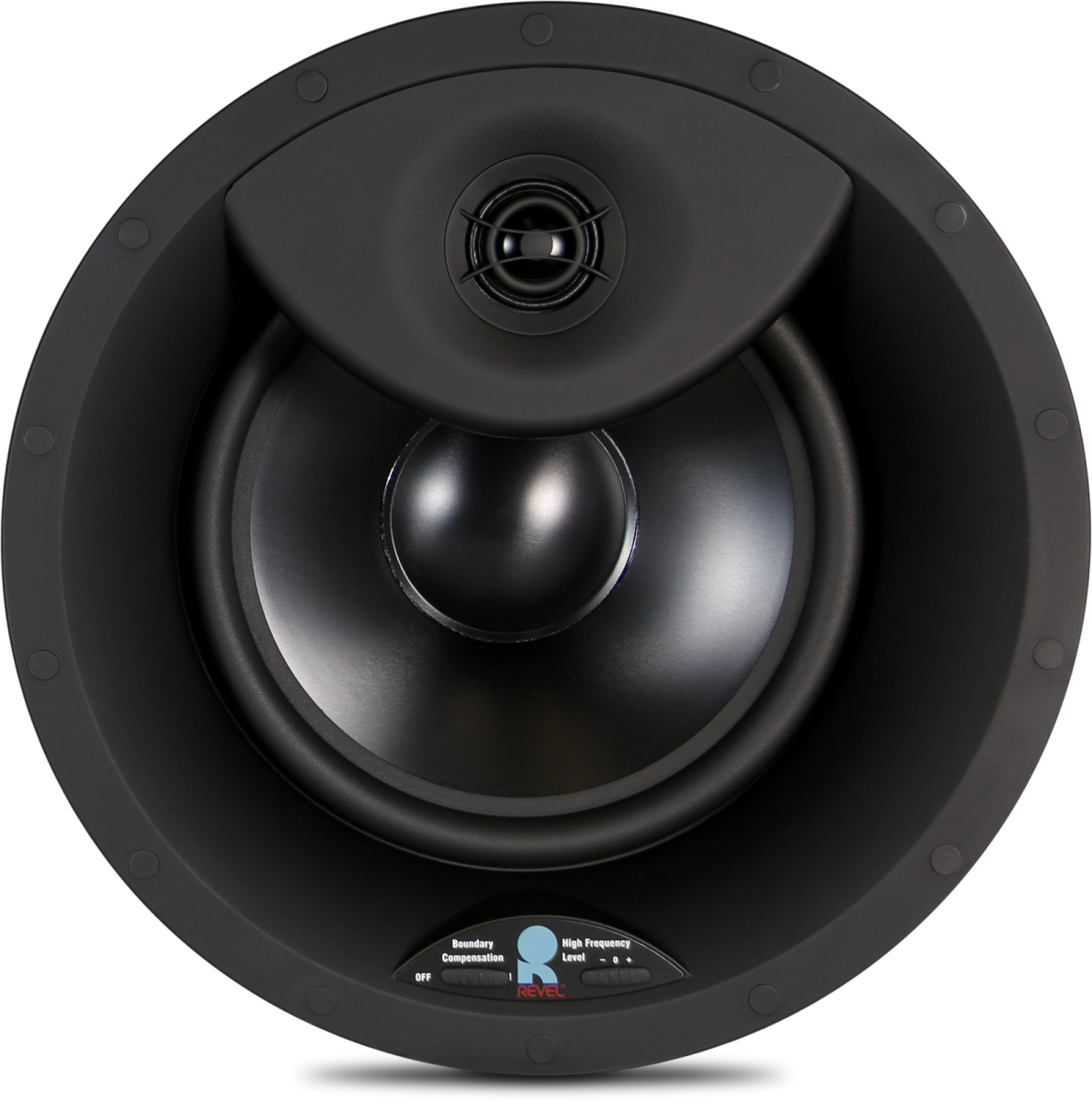

C780 Highlights
General Specifications
Depth | 5.2" (13.2 cm) |
---|---|
Weight | 3.1 lb (1.4 kg) / Shipping weight 4.1 lb (1.9 kg) |
Features | Cutout dimensions (dia.) 9.6" (24.4 cm) • Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm) • Square grille finished dimensions (h x w) 10.7" x 10.7" (27.2 cm x 27.2 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control Low LF boundary compensation |
Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Audio Specifications
Depth | 5.2" (13.2 cm) |
---|---|
Weight | 3.1 lb (1.4 kg) / Shipping weight 4.1 lb (1.9 kg) |
Features | Cutout dimensions (dia.) 9.6" (24.4 cm) • Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm) • Square grille finished dimensions (h x w) 10.7" x 10.7" (27.2 cm x 27.2 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control Low LF boundary compensation |
Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
