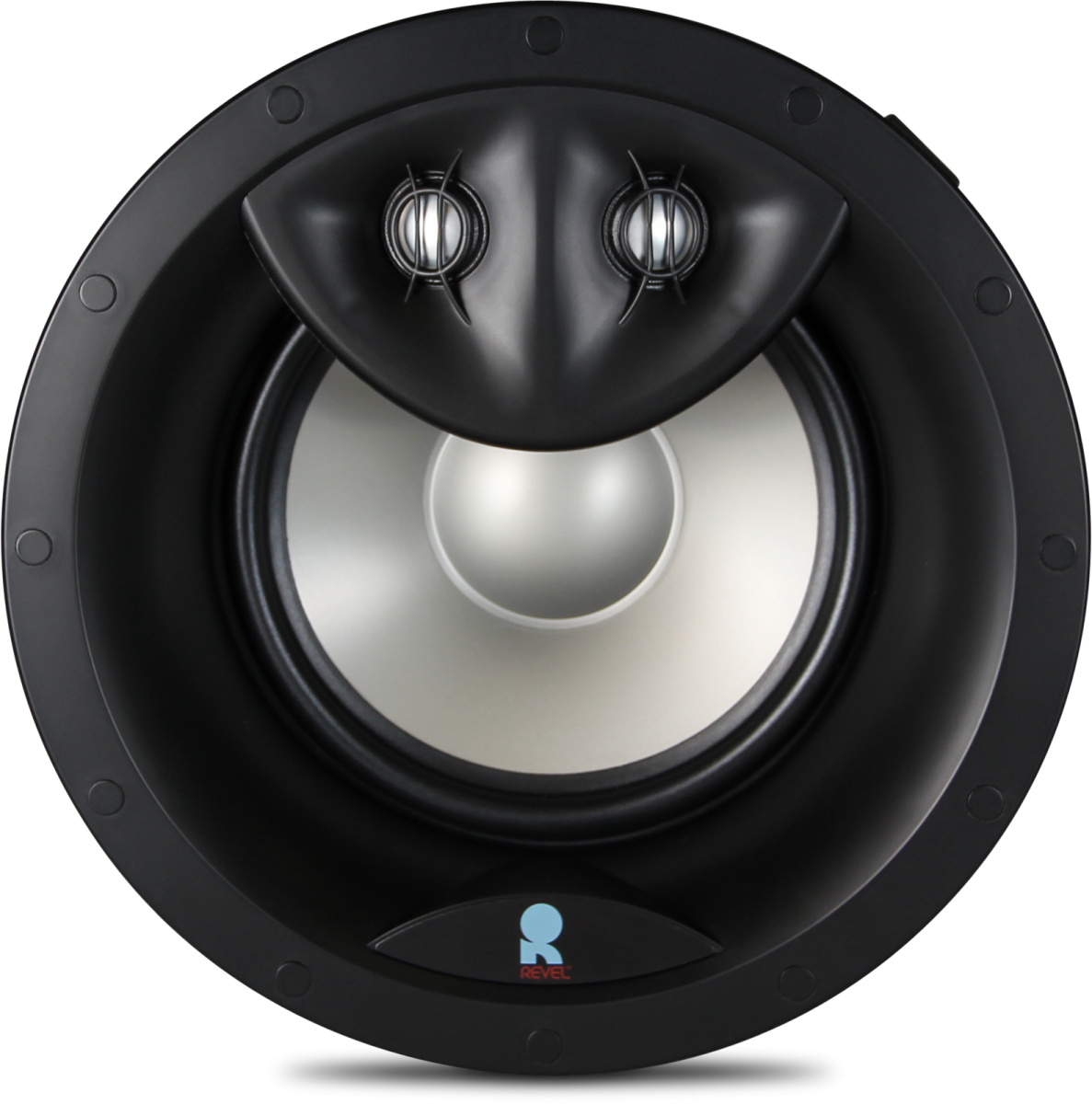

REVEL C360DT Highlights
General Specifications
Frequency Response | 55-22kHz +/-3dB |
---|---|
Depth | 4.8" (12.2 cm) |
Weight | 1.9 lb (0.9 kg) / Shipping Weight 2.6 lb (1.2 kg) |
Features | Cutout dimensions (dia.) 8" (20.3 cm) • Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm) • Square grille finished dimensions (h x w) 9.1" x 9.1" (23.1 cm x 23.1 cm) |
High-frequency Driver Components | Two 1" aluminum dome tweeters with waveguides |
Low-frequency Driver Components | 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-polymer Frame Woofer |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Recommended Amplifier Power | Power Handling 65W (EIA RS426B) |
Audio Specifications
Frequency Response | 55-22kHz +/-3dB |
---|---|
Depth | 4.8" (12.2 cm) |
Weight | 1.9 lb (0.9 kg) / Shipping Weight 2.6 lb (1.2 kg) |
Features | Cutout dimensions (dia.) 8" (20.3 cm) • Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm) • Square grille finished dimensions (h x w) 9.1" x 9.1" (23.1 cm x 23.1 cm) |
High-frequency Driver Components | Two 1" aluminum dome tweeters with waveguides |
Low-frequency Driver Components | 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-polymer Frame Woofer |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Recommended Amplifier Power | Power Handling 65W (EIA RS426B) |
