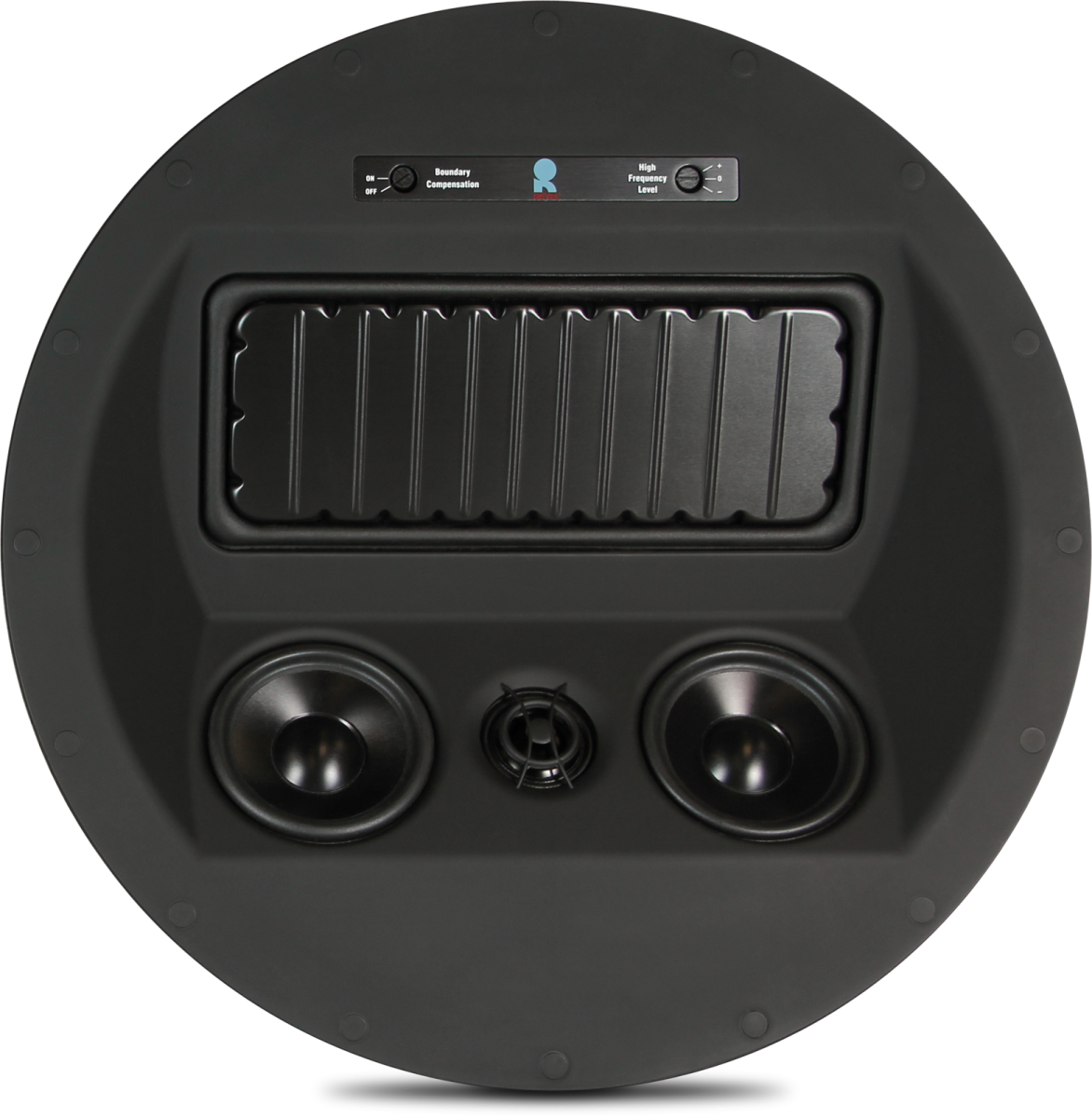

C760L Highlights
General Specifications
Depth | 5.7" (14.5 cm) |
---|---|
Weight | 4 lb (1.8 kg) / Shipping weight 5.2 lb (2.4 kg) |
Included Accessories | Cutout dimensions (dia.) 11.3" (28.7 cm) • Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 12.5" (31.8 cm) • Square grille finished dimensions (h x w) 12.5" x 12.5" (31.8 cm x 31.8 cm) |
High Frequency Driver Components | 1" aluminum high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control Low LF boundary compensation |
Low Frequency Driver Components | 7.8" x 3.4" Micro-Ceramic Composite (MCC) Cone, Diaphragm Flat-Panel Woofer |
Mid-frequency Driver Components | Two 3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midranges |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Audio Specifications
Depth | 5.7" (14.5 cm) |
---|---|
Weight | 4 lb (1.8 kg) / Shipping weight 5.2 lb (2.4 kg) |
Included Accessories | Cutout dimensions (dia.) 11.3" (28.7 cm) • Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 12.5" (31.8 cm) • Square grille finished dimensions (h x w) 12.5" x 12.5" (31.8 cm x 31.8 cm) |
High Frequency Driver Components | 1" aluminum high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control Low LF boundary compensation |
Low Frequency Driver Components | 7.8" x 3.4" Micro-Ceramic Composite (MCC) Cone, Diaphragm Flat-Panel Woofer |
Mid-frequency Driver Components | Two 3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midranges |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
