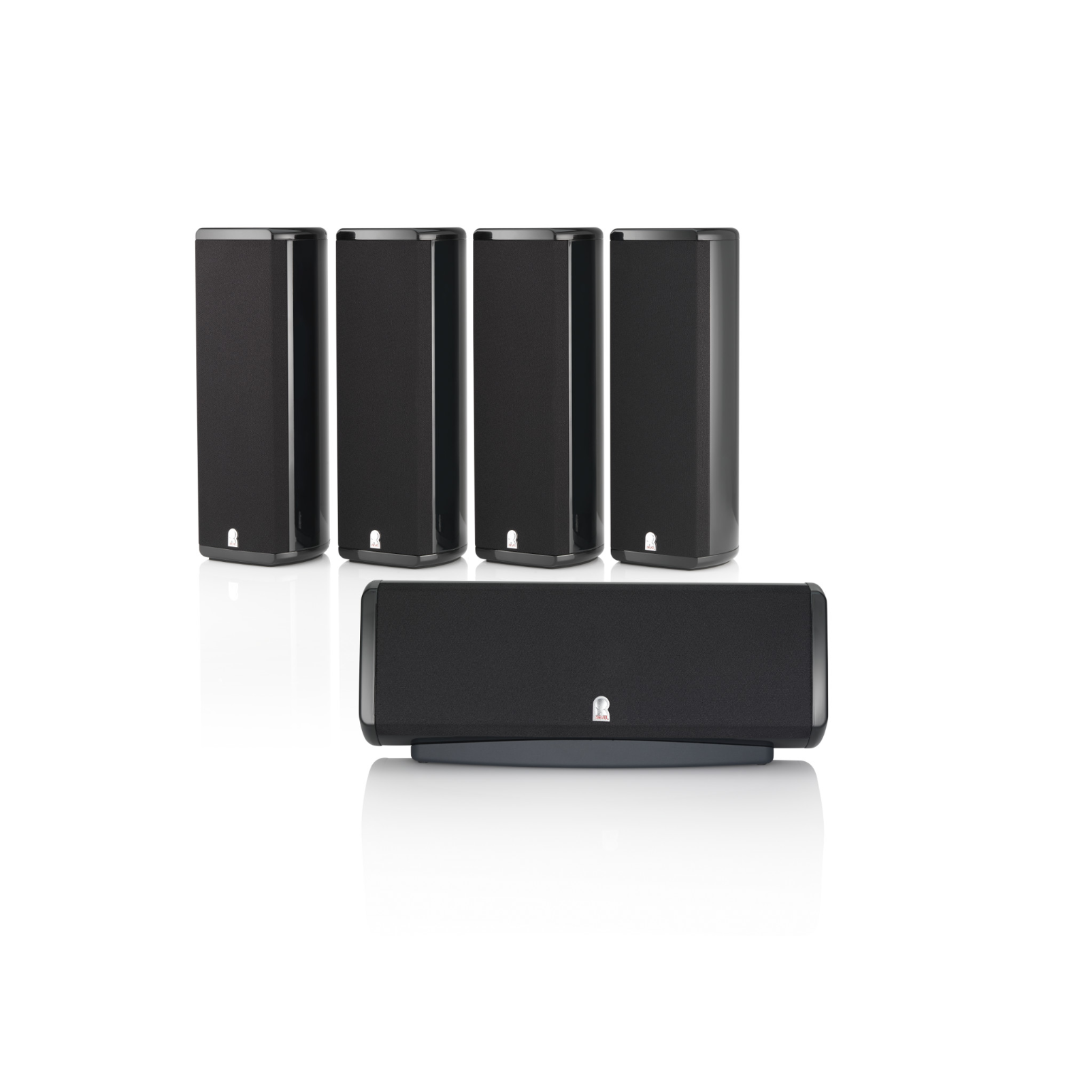

M8 SP5 - Black Gloss - 5-channel Home Theater Sound Support System - Hero M8 SP5 - Black Gloss - 5-channel Home Theater Sound Support System - Front M8 SP5 - Black Gloss - 5-channel Home Theater Sound Support System - Detailshot 1

M8 SP5

REVM8SP5BLK

5-channel Home Theater Sound Support System


The Revel Concerta SP5 is a powerful 5-channel home theater surround system, featuring four vertically oriented M8 satellite surround/front-channel loudspeakers, and a horizontally oriented center channel speaker to provide the heartbeat of your audio experience.

Find a Dealer

M8 SP5

Revel Concerta SP5 is a 5-channel support system for your home theater sound, featuring four Revel M8 surround/front-channel loudspeakers, and one center channel speaker. SP5 packages are available in three automotive-grade, high-gloss finishes – white, red and black, each with a color-matching cloth grille – for stylish and elegant appearance, and easy integration into a wide variety of decors. A compact form factor allows for inconspicuous shelf placement, and included surface and wall-mounting hardware offers superb flexibility with positioning options. In addition, the speakers are magnetically shielded for safe placement near electronic devices. Easily combine SP5 packages with any number of SP2 packages to create virtually unlimited channel configurations for legendary Revel home theater surround audio of uncommon realism in nearly any size setting.

  • Highlights & Specs
  • Documents & Downloads

M8 SP5 Highlights

  • 4 Revel Concerta M8 Surround/Front-Channel Loudspeakers
  • 1 Center Channel Speaker with Table Cradle and Wall Bracket
  • Included Surface and Wall-Mounting Hardware
  • 3 Automotive-Grade High-Gloss Finishes Available

General Specifications

High-Frequency Driver Components 1” MCC Dome Tweeter
Low-Frequency Driver Components Dual 3” Micro Ceramic Composite (MCC) Cone Woofers
Frequency Response (+/-3DB) 110Hz – 21kHz
Recommended Amplifier Power Range (Watts) 10 – 125 Watts
Crossover Frequencies 2.2kHz
Nominal Impedance 8 Ohms
Sensitivity 88dB (2.83V @1M)
Finishes High-gloss Black, White, Red
Dimensions (H X W X D) 11.63”/4.25”/4.5” (296mm/107mm/113mm)
Weight 3.45 lbs / 1.6kg per Speaker
