M8 SP2 Highlights
-

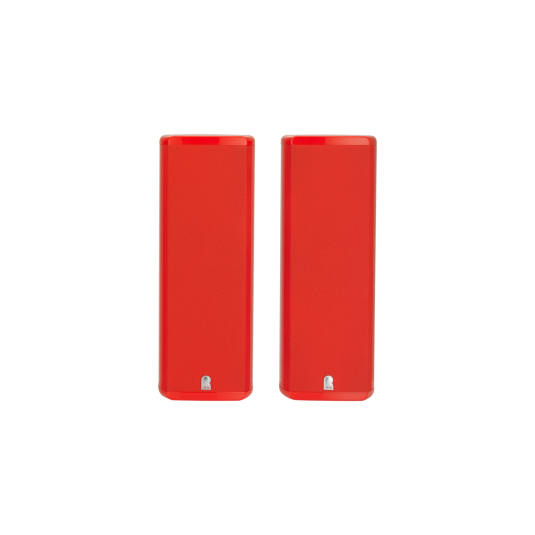

2 Revel Concerta M8 Surround/Front-Channel Loudspeakers
-
Included Wall-Mounting Bracket
-
3 Automotive-Grade High-Gloss Finishes Available
-
Magnetic Shielding
General Specifications
High-Frequency Driver Components | 1” MCC Dome Tweeter |
---|---|
Low-Frequency Driver Components | Dual 3” Micro Ceramic Composite (MCC) Cone Woofers |
Frequency Response (+/-3DB) | 110Hz – 21kHz |
Recommended Amplifier Power Range (WATTS) | 10 – 125 Watts |
Crossover Frequencies | 2.2kHz |
Nominal Impedance | 8 Ohms |
Sensitivity | 88dB (2.83V @1M) |
Finishes | High-gloss Black, White, Red |
Dimensions (H X W X D) | 11.63”/4.25”/4.5” (296mm/107mm/113mm) |
Weight | 3.45 lbs / 1.6kg per Speaker |
