W890

W890

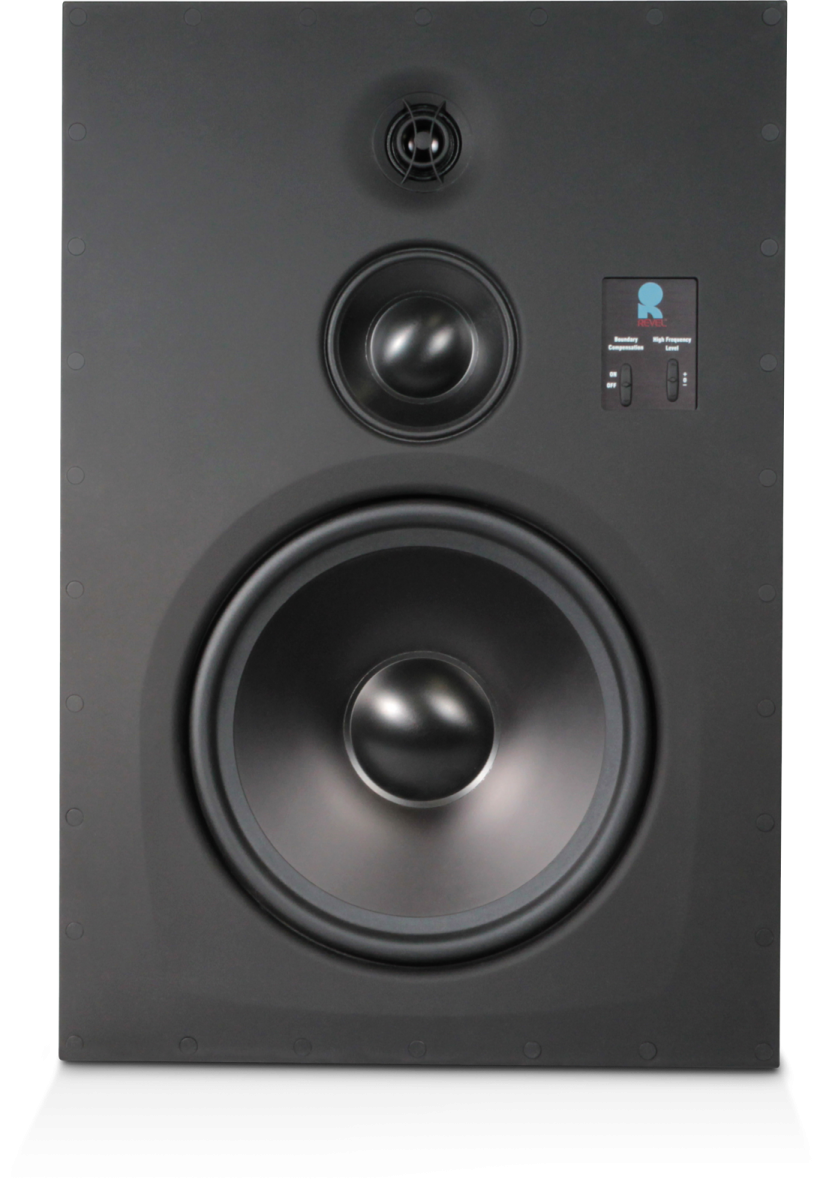

REVEL W890

9" In-Wall Loudspeaker


9" In-Wall Loudspeaker

Find a Dealer

W890

Presenting an entirely new range of in-wall loudspeakers that combine Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek new look that integrates easily into any décor.

All models feature Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers. Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types.

For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting.

With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.

  • Highlights & Specs
  • Documents & Downloads

W890 Highlights


General Specifications

Depth 3.7" (9.4 cm)
Weight 10.8 lb (4.9 kg) / Shipping weight
Crossover Frequencies Advanced high-order crossover network
Features Cutout dimensions (H x W)
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High frequency Extension
Low Frequency Driver Components 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mid-frequency Driver Components 3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange
Mounting RollerLock tool-free installation mechanism • Compatible with wall material thickness range

Audio Specifications

Depth 3.7" (9.4 cm)
Weight 10.8 lb (4.9 kg) / Shipping weight
Crossover Frequencies Advanced high-order crossover network
Features Cutout dimensions (H x W)
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High frequency Extension
Low Frequency Driver Components 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mid-frequency Driver Components 3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange
Mounting RollerLock tool-free installation mechanism • Compatible with wall material thickness range
