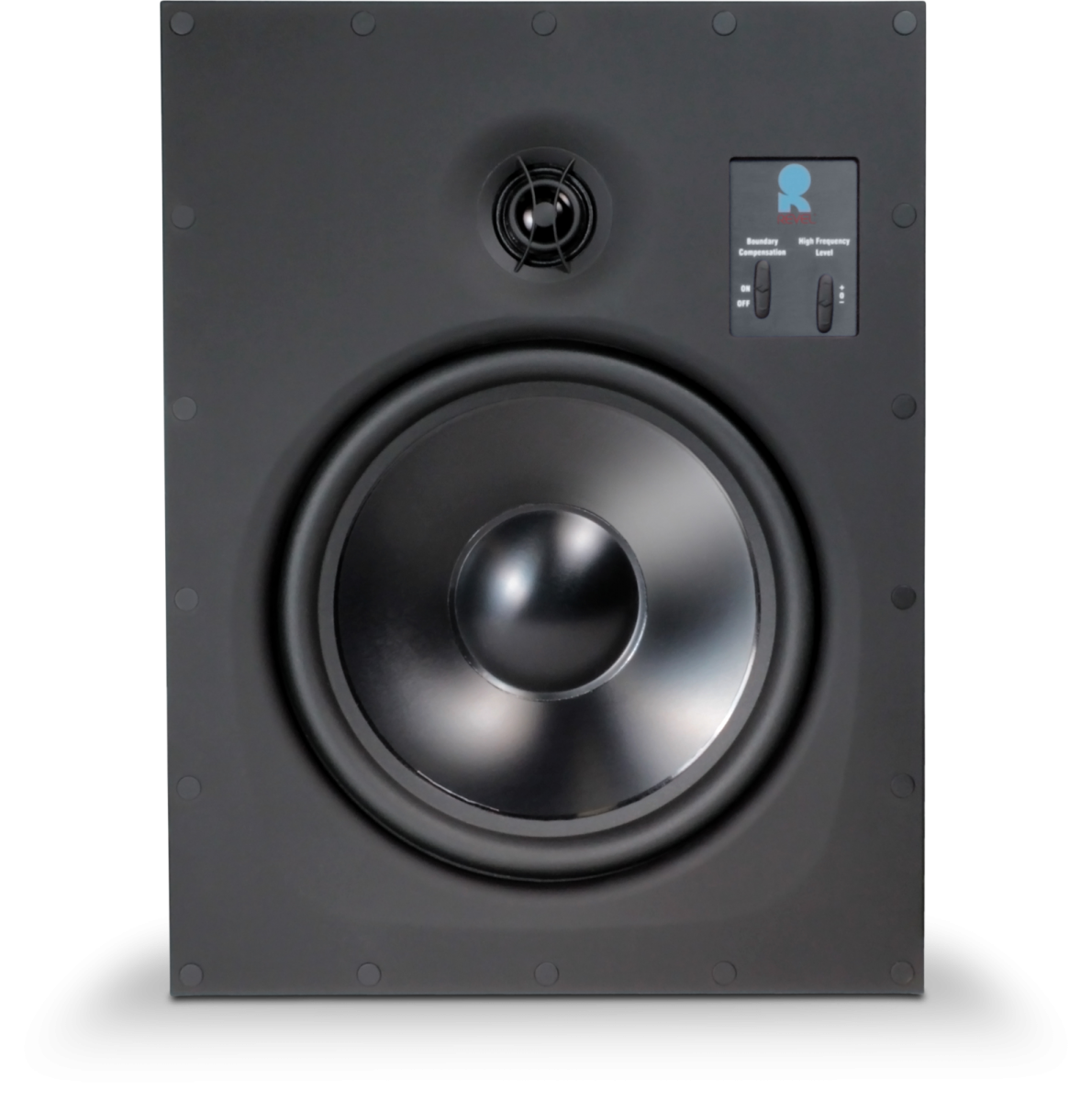

W780 - Black - 8" In-Wall Loudspeaker - Hero

W780

REVEL W780

8" In-Wall Loudspeaker


Presenting an entirely new range of in-wall loudspeakers that combine Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek new look that integrates easily into any décor.

Find a Dealer

W780

Presenting an entirely new range of in-wall loudspeakers that combine Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek new look that integrates easily into any décor.

All models feature Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers.

Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types.

For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting.

With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.

  • Highlights & Specs
  • Documents & Downloads

W780 Highlights


General Specifications

Depth Mounting depth 3.7" (9.4 cm)
Weight 7.1 lb (3.2 kg) / Shipping weight 8.6 lb (3.9 kg)
Features Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension (-10dB) 3-position HF level control Low LF boundary compensation
Low Frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mounting RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)

Audio Specifications

Depth Mounting depth 3.7" (9.4 cm)
Weight 7.1 lb (3.2 kg) / Shipping weight 8.6 lb (3.9 kg)
Features Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension (-10dB) 3-position HF level control Low LF boundary compensation
Low Frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mounting RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.
