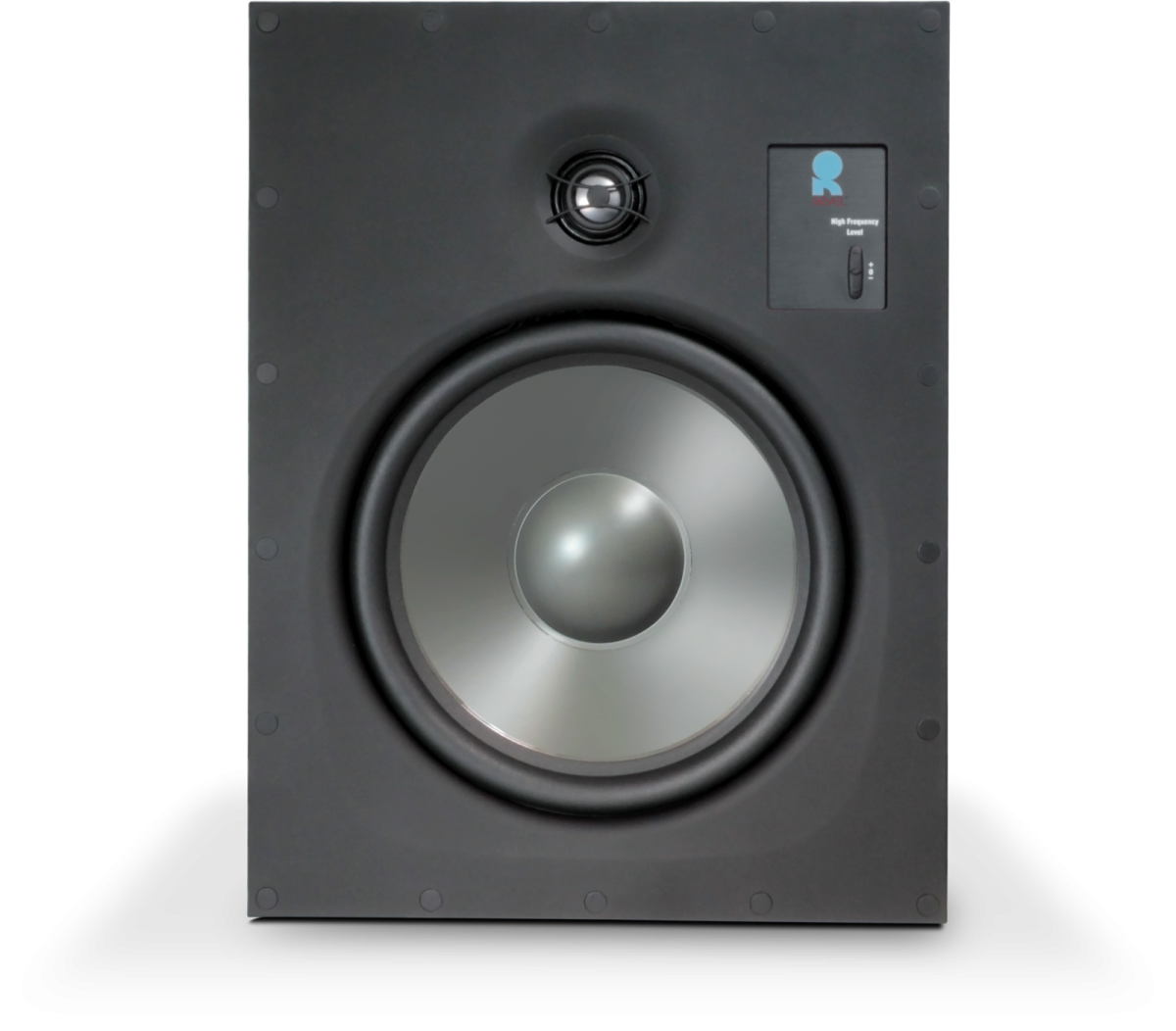

W580 Highlights
General Specifications
Depth | 3.8" (9.6 cm) |
---|---|
Weight | 6.4 lb (2.9 kg) / Shipping weight 7.7 lb (3.5 kg) |
Features | Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control |
Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Audio Specifications
Depth | 3.8" (9.6 cm) |
---|---|
Weight | 6.4 lb (2.9 kg) / Shipping weight 7.7 lb (3.5 kg) |
Features | Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control |
Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer |
Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
