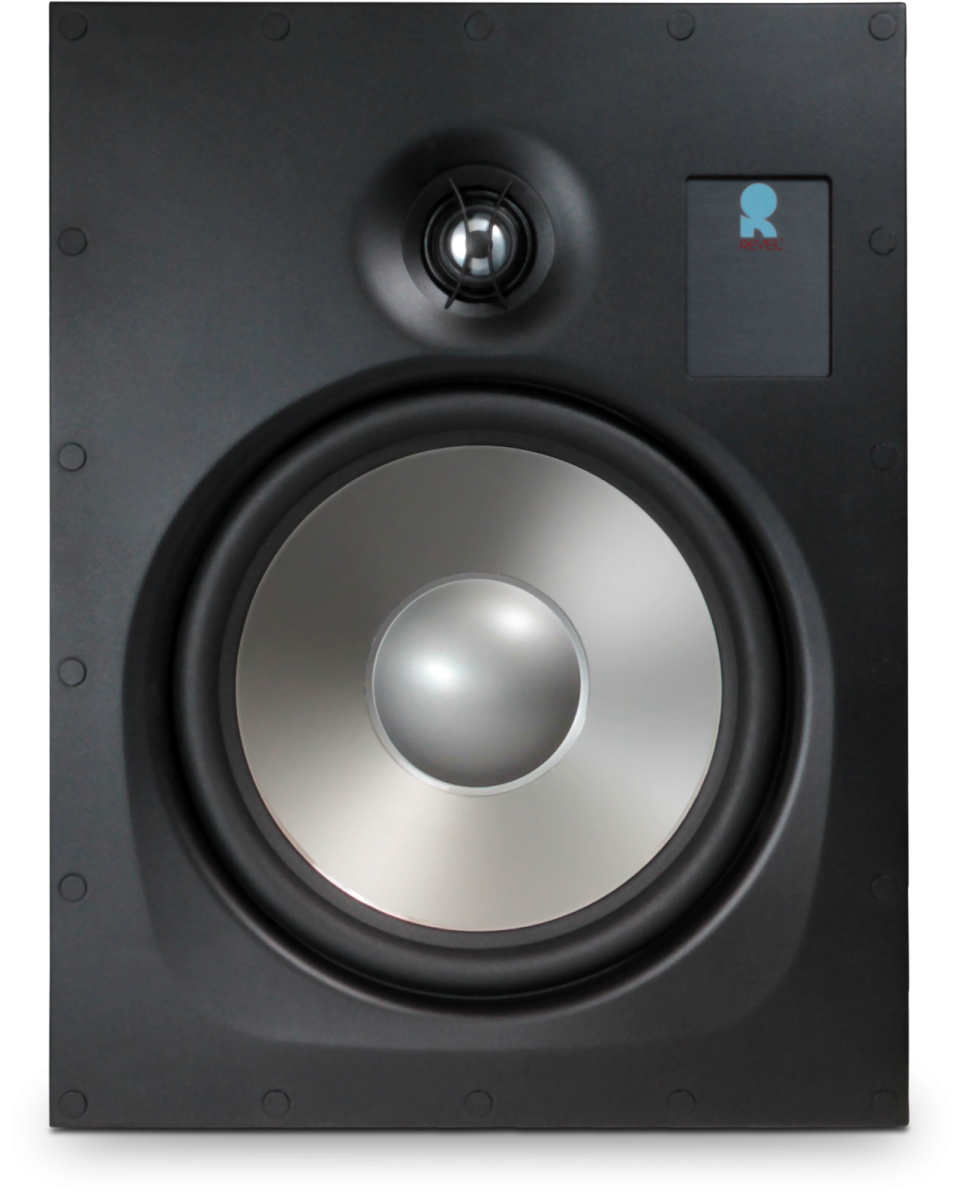

REVEL W380

8" In-Wall Loudspeaker


8" In-Wall Loudspeaker

Find a Dealer

W380

Presenting an entirely new range of in-wall loudspeakers that combine Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek new look that integrates easily into any décor.

All models feature Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers.

Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types.

For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting.

With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.

  • Highlights & Specs
  • Documents & Downloads

W380 Highlights


General Specifications

Depth 3.7" (9.4 cm)
Weight 4.9 lb (2.2 kg) / Shipping weight 6.3 lb (2.9 kg)
Features Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm)
High-frequency Driver Components 1" aluminum dome swiveling tweeter with waveguide
Low-frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
Mounting RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)

Audio Specifications

Depth 3.7" (9.4 cm)
Weight 4.9 lb (2.2 kg) / Shipping weight 6.3 lb (2.9 kg)
Features Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm)
High-frequency Driver Components 1" aluminum dome swiveling tweeter with waveguide
Low-frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
Mounting RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)
