S12

S12

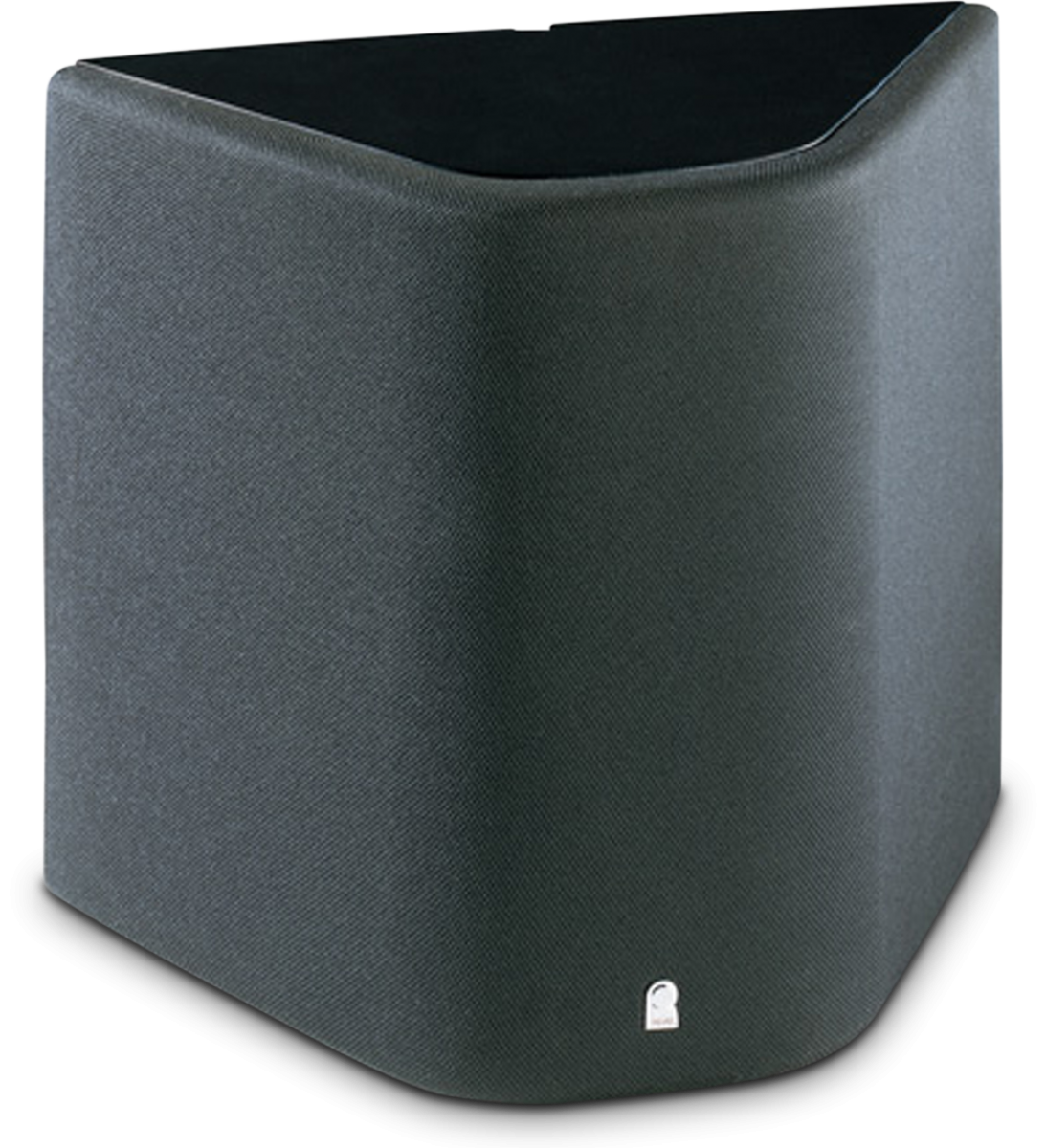

NS12 BLACK

Concerta Series, 2-Way Surround Loudspeaker


Concerta Series, 2-Way Surround Loudspeaker

Find a Dealer

S12

A truly multi-faceted performer, the Concerta S12 surround loudspeaker can be configured for different dispersion characteristics according to the type of surround effect desired as well as for different placements within the listening room.

Featuring a pair of woofers with Organic Ceramic Composite (OCC) cones, as well as a pair of OCC dome tweeters with neodymium magnets along with our proprietary Constant Acoustic Impedance technology, the S12 offers unparalleled surround sound versatility.

Three dispersion modes are user-selectable via the front panel switch. Choose Dipole mode for side-of-listening area placement, where the two-driver pair sets operate in reverse phase mode, which minimizes localization while providing broad surround sound dispersion – ideal for movie surround soundtracks. Bipole mode provides the best combination of dispersion and improved localization for pinpoint surround sound imaging with SACD, DVD-Audio, DTS® and Dolby Digital® multichannel music surround sources. A third Monopole mode allows the deactivation of one of the two driver sets, when spot-on imaging is desired, such as for discrete multichannel pop music.

For 7.1 systems such as THX Ultra2® Dolby Digital EX® and DTS ES®, the S12 also features dual separated crossovers and two pairs of speaker input terminals. By removing the shorting straps on the binding post pairs, one S12 can function as two distinct surround loudspeakers in a single enclosure. This unique capability allows the use of one S12 to function either as both left and right rear surrounds, or as both a side and rear surround speaker. The Concerta S12 can therefore provide a unique solution for 7.1-channel systems in tight spaces.

  • Highlights & Specs
  • Documents & Downloads

S12 Highlights

  • Dual 5" deep-anodized cone woofers
  • Dual 1" anodized Al-dome tweeters
  • CAI waveguides
  • Bipole/dipole/monopole operation
  • High-order crossover
  • Heavily braced MDF enclosure

General Specifications

Frequency Response In-room response
Height 11.8" (29.9 cm)
Width 13.3" (33.7 cm)
Depth 7" (17.8 cm)
Weight Shipping weight
Crossover Frequencies 2-Way, high-order @ 2.5kHz
Finishes Black finish
High Frequency Driver Components Dual 1" (2.5 cm) micro-ceramic composite (MCC) cone tweeters
Nominal Impedance 8 Ohms
Low Frequency Driver Components Dual 5" (12.7 cm) micro-ceramic composite (MCC) cone woofers
Recommended Amplifier Power 20 – 120 Watts
Sensitivity 87dB SPL, with 2.83V @ 1m (2 pi anechoic)

Audio Specifications

Frequency Response In-room response
Height 11.8" (29.9 cm)
Width 13.3" (33.7 cm)
Depth 7" (17.8 cm)
Weight Shipping weight
Crossover Frequencies 2-Way, high-order @ 2.5kHz
Finishes Black finish
High Frequency Driver Components Dual 1" (2.5 cm) micro-ceramic composite (MCC) cone tweeters
Nominal Impedance 8 Ohms
Low Frequency Driver Components Dual 5" (12.7 cm) micro-ceramic composite (MCC) cone woofers
Recommended Amplifier Power 20 – 120 Watts
Sensitivity 87dB SPL, with 2.83V @ 1m (2 pi anechoic)
