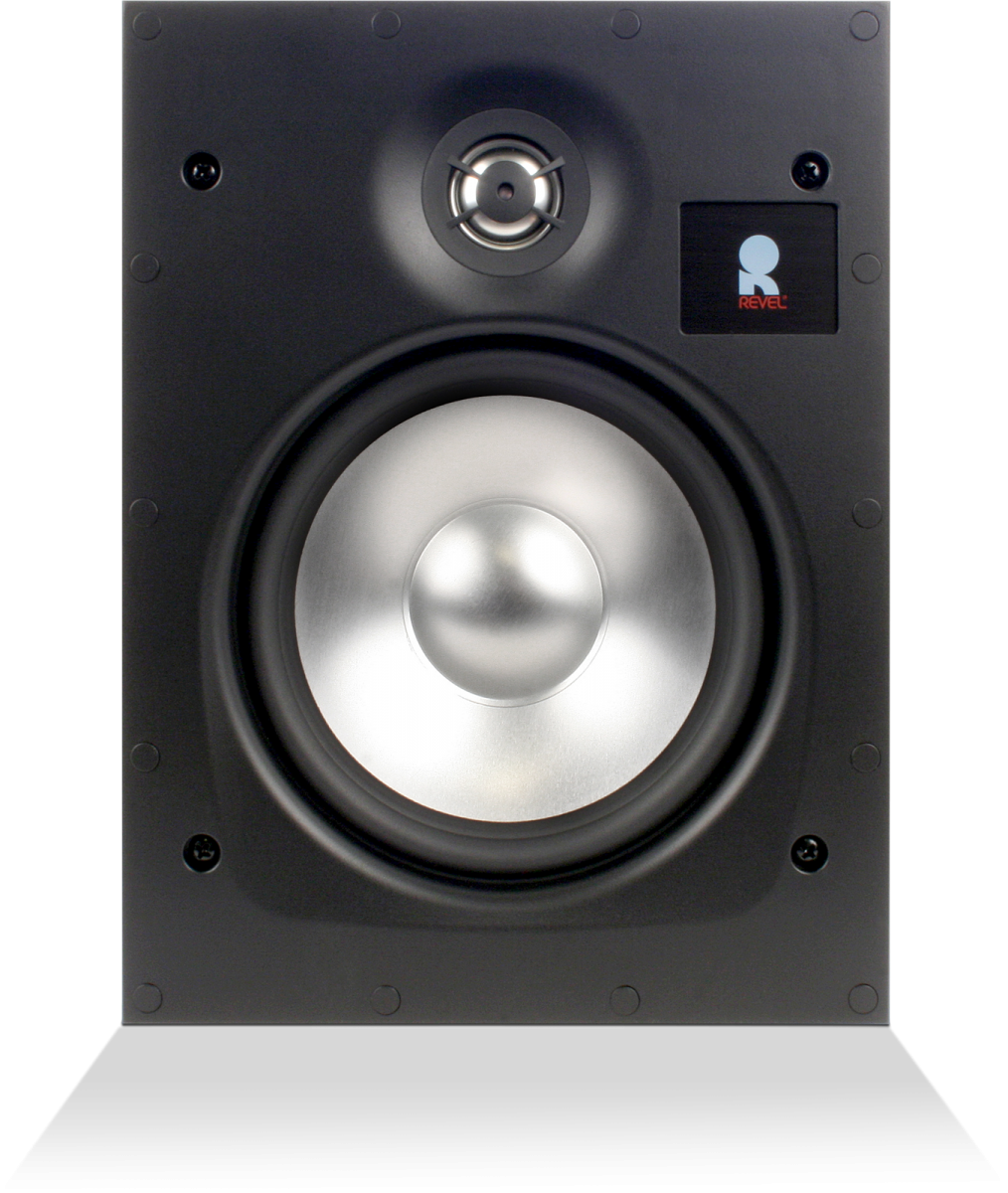

W263

W263

6 ½" In-Wall Loudspeaker


Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Find a Dealer

W263

Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

  • Highlights & Specs
  • Documents & Downloads

W263 Highlights

  • Long-throw woofers with rubber surrounds provide high output with low distortion
  • 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network delivers accurate timbre reproduction

General Specifications

Weight 3.4 lb (1.5kg) / Shipping Weight 4.9 lb (2.2kg)
High-frequency Driver Components 1" Aluminum-Dome Tweeter with Waveguide
Low-frequency Driver Components 6-1/2" Aluminum Cone, Cast-Polymer Frame Woofer
Mounting Mounting Depth 3.5" (89mm)
Recommended Amplifier Power 10 - 100 Watts RMS
Sensitivity 88dB
