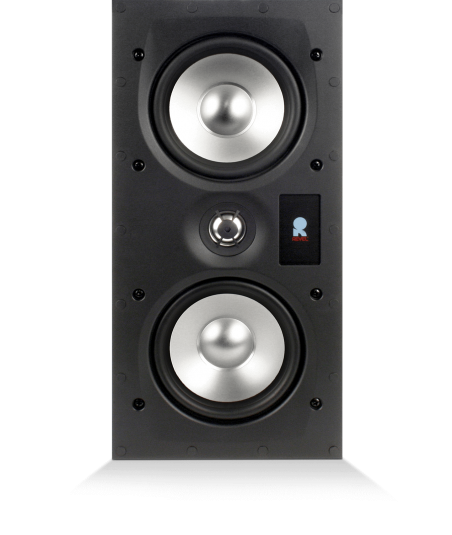

W253L - White - LCR Suitable for Vertical or Horizontal Orientation - Hero W253L - White - LCR Suitable for Vertical or Horizontal Orientation - Back W253L - White - LCR Suitable for Vertical or Horizontal Orientation - Detailshot 3 W253L - White - LCR Suitable for Vertical or Horizontal Orientation - Detailshot 4

W253L

W253L

LCR Suitable for Vertical or Horizontal Orientation


Since the first RevelĀ® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Find a Dealer

W253L

Since the first RevelĀ® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

  • Highlights & Specs
  • Documents & Downloads

W253L Highlights

  • Long-throw woofers with rubber surrounds provide high output with low distortion
  • 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network delivers accurate timbre reproduction
  • Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV

General Specifications

Height Grille Finished Dimensions (H x W) 15.1" x 7.4" (18.8cm x 7.8cm); Cutout Dimensions (H x W) 14.1" x 6.4" (35.9cm x 16.3cm)
Weight 5.6 lb (2.5kg) / Shipping Weight 7.3 lb (3.3kg)
Features C-2 Installation Mechanism; Compatible with Wall Material Thickness Range 0.5" – 2.0" (1.3cm – 2.5cm)
High-frequency Driver Components 1" Aluminum-Dome Tweeter with Waveguide
Low-frequency Driver Components 2 x 5-1/4" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers
Mounting Mounting Depth 3.5" (88mm)
Recommended Amplifier Power 10 - 100 Watts RMS
Sensitivity 91dB
Optional Accessories Preconstruction Bracket and Fire-Rated Back-Box Accessories Available
